The AS393AMTR-E1 is a low power, low offset voltage dual comparator from Diodes Incorporated. It consists of two independent precision voltage comparators with typical offset voltage of 1.0mV and low supply current drain of 0.6mA. The device is designed to operate from a single power supply over a wide range of voltages (2V to 36V) or from dual supplies (±1V to ±18V).
Key specifications include low input bias current of 25nA typical, low input offset current of ±5nA typical, and open collector outputs that can sink up to 4mA with a saturation voltage of 200mV typical. The comparator offers a wide input common mode voltage range that includes ground and differential input voltage range equal to the power supply voltage.

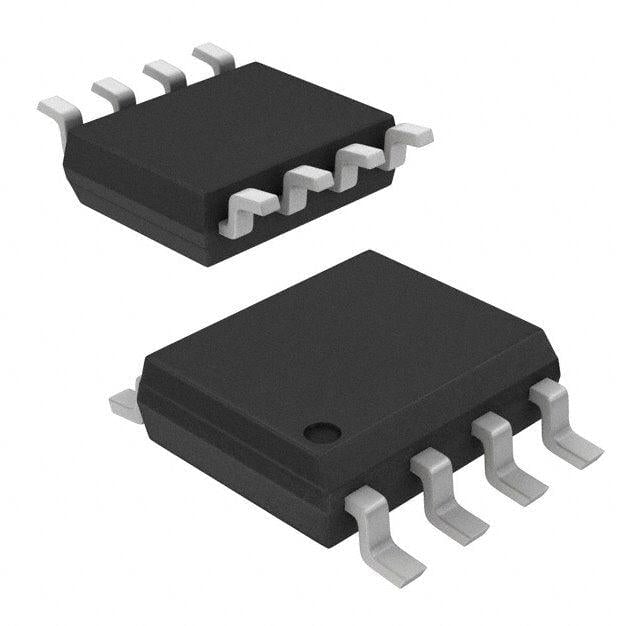

The AS393AMTR-E1 is available in a surface mount 8-SOIC package (0.154", 3.90mm Width) and operates over an industrial temperature range of -40°C to 85°C. It is fully RoHS compliant and lead-free, making it suitable for environmentally conscious designs. The low power consumption and wide supply voltage range make it a versatile choice for general purpose comparator applications.
The AS393AMTR-E1 can operate from a single supply of 2V to 36V or dual supplies of ±1V to ±18V.
-40°C to 85°C.
8-SOIC (0.154", 3.90mm Width) surface mount package.
Yes, it is RoHS3 compliant and lead-free.
1.0mV typical.
Open collector.
Two independent comparators.
