| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,123 pcs
|
4123 pcs | On Request | 1 | On Request | On Request | 1533+ | On Request | On Request | |
|
2,349 pcs
|
2349 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Amplifier Type | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Power Supply Type | |
| Tape & Reel | |
| Voltage |
The Diodes Incorporated AS358AMTR-E1 is a dual-channel, general-purpose operational amplifier designed for a wide range of applications. It supports both single and dual power supply configurations, with a maximum supply voltage span of 36V and a minimum of 3V.
Key electrical characteristics include a typical output current of 40mA, a typical supply current of 700µA per channel, and a typical voltage gain of 100dB. The amplifier features a low input bias current of 20nA and a maximum input offset voltage of 3mV at 5V.

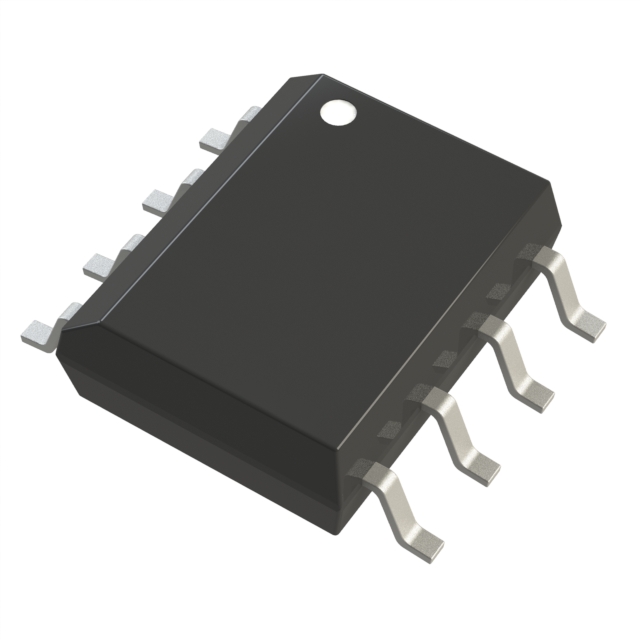

This device is housed in an 8-SOIC package with gull-wing leads, suitable for surface mounting. It operates reliably within a temperature range of -40°C to 85°C. The AS358AMTR-E1 is built using bipolar process technology.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.23 | $1.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AS358AMTR-E1 operates with a single supply voltage from 3V to 36V, or a dual supply voltage from ±1.5V to ±18V.
The AS358AMTR-E1 has 2 channels per chip.
The typical output current for the AS358AMTR-E1 is 40mA.
The AS358AMTR-E1 operates within a temperature range of -40°C to 85°C.
The AS358AMTR-E1 is supplied in an 8-SOIC package.
