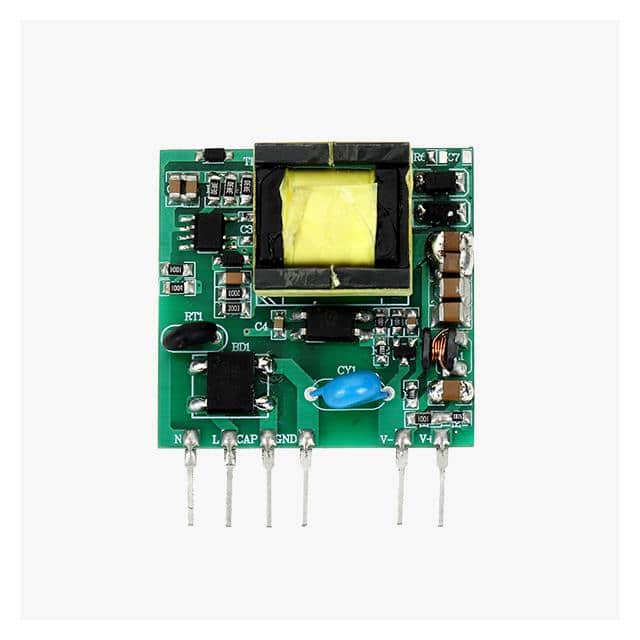

The HenLv Power AS220S05DCL-5W is a compact AC/DC converter module designed for board mounting. It operates with a wide input voltage range of 85-265 VAC, making it suitable for various power applications.
This module provides a stable 5V DC output with a maximum power rating of 5W and a current capability of 1.2A. It features an efficiency of 68% and an isolation voltage of 3000 VDC. The operating temperature range is -40℃ to +85℃.
The AS220S05DCL-5W comes in a DIP (Dual In-line Package) for through-hole mounting. Its dimensions are 41.8mm in length, 26.9mm in width, and 11.0mm in height. The product is designed with features such as overcurrent, short circuit, and overheat protection, along with good shielding against interference.
Applications for this module include communication devices, instrumentation, industrial control, and monitoring equipment. It complies with RoHS3 standards.
85-265 VAC (also 120-430 VDC).
5 VDC at 1.2A.
5W.
3000 VDC.
-40°C to +85°C.
DIP (through-hole mounting).
41.8mm x 26.9mm x 11.0mm.
