AS21P2TLRQ AS21P2TLRQ is a low voltage dual single-pole double-throw analog switch (SPDT) from STMicroelectronics. It features 0.5Ω max on-resistance, 55MHz bandwidth, and operates from 1.65V to 4.3V.
Mfr Part #:

AS21P2TLRQ

Available from 1 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
AS21P2TLRQ is a low voltage dual single-pole double-throw analog switch (SPDT) from STMicroelectronics. It features 0.5Ω max on-resistance, 55MHz bandwidth, and operates from 1.65V to 4.3V.
✓ Total Stock: 2,500 pcs

AS21P2TLRQ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
2,500 pcs
On Request
2500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AS21P2TLRQ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Channel
Channel Capacitance (CS(off), CD(off))
Charge Injection
Crosstalk
Current
Height
Length
Mounting Type
Multiplexer
Number of Circuits
Number of Pins
On
Operating Temperature
Power Dissipation
Propagation Delay
SVHC Present
Supplier Device Package
Supply Current
Switch Circuit
Switch Time (Ton, Toff) (Max)
Voltage
Weight
Width
View Similar Products (0)

AS21P2TLRQ Description

Short technical summary and product information.

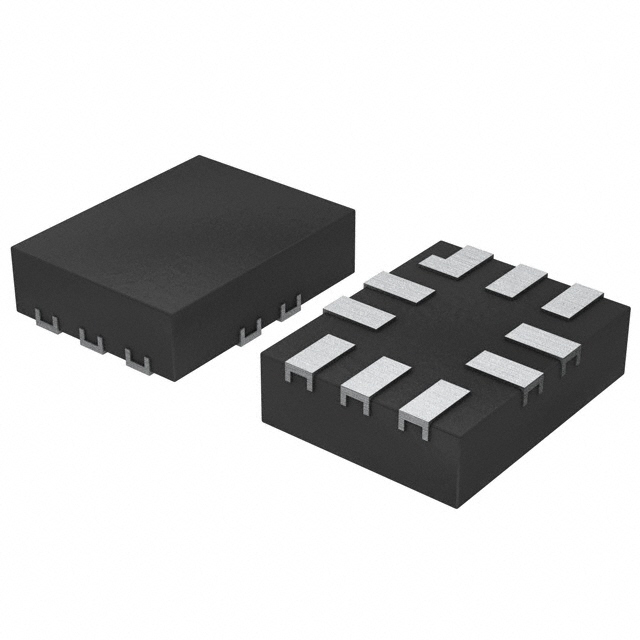

The AS21P2TLRQ is a low voltage dual single-pole double-throw (SPDT) analog switch from STMicroelectronics, designed for precision signal routing in portable and battery-powered applications. It features a maximum on-resistance of 500mΩ, ensuring minimal signal attenuation. The device offers a -3dB bandwidth of 55MHz, making it suitable for high-speed analog and digital signals. Key electrical characteristics include a charge injection of 49pC, crosstalk of -72dB at 100kHz, and maximum switch times of 65ns (turn-on) and 40ns (turn-off). The supply voltage range is 1.65V to 4.3V, with a maximum supply current of 200nA. Power dissipation is rated at 1.12W, and propagation delay is 300ps typical.



The switch operates over a temperature range of -40°C to 85°C. It is housed in a 10-UFQFN package (10-QFN 1.8x1.4), with a height of 500µm, length of 1.9mm, and width of 1.5mm. The device is surface mountable and is supplied in Tape & Reel packaging. Break-before-make switching action is inherent, preventing momentary short circuits during channel transitions. The AS21P2TLRQ is suitable for applications such as audio signal routing, data acquisition systems, and analog multiplexing in battery-operated devices.

AS21P2TLRQ Quick Information

Product Type: Analog Switch
Canonical Name: AS21P2TLRQ - Low Voltage Dual SPDT Analog Switch with 0.5 Ohm Max On-Resistance
Subcategory: SPDT Switch

AS21P2TLRQ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

AS21P2TLRQ Features

  • Low voltage dual SPDT analog switch.
  • 0.5Ω max on-resistance typical.
  • 55MHz bandwidth for signal switching.
  • Break-before-make switching action.
  • Operates from 1.65V to 4.3V supply.

AS21P2TLRQ Applications

  • Ideal for audio signal routing.
  • Suitable for battery-powered devices.
  • Used in data acquisition systems.
  • Perfect for analog multiplexing applications.
  • Applicable in portable electronics.

AS21P2TLRQ FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the AS21P2TLRQ?

The operating temperature range is -40°C to 85°C.

What is the supply voltage range for this device?

The supply voltage range is 1.65V to 4.3V.

What package does the AS21P2TLRQ come in?

It comes in a 10-UFQFN package (10-QFN 1.8x1.4).

Is the AS21P2TLRQ RoHS compliant?

It is listed as RoHS3 Compliant, but this status is unverified.

What is the on-resistance of the AS21P2TLRQ?

The typical on-resistance is 500mΩ (0.5Ω) maximum.

What is the -3dB bandwidth of this switch?

The -3dB bandwidth is 55MHz.

What are the switching times for the AS21P2TLRQ?

Maximum turn-on time is 65ns and turn-off time is 40ns.
