AS204-80LF-EVB Evaluation board for Skyworks AS204-80 SP4T nonreflective switch with integrated driver. Frequency range 300kHz to 3.5GHz, low insertion loss, high isolation.
Mfr Part #:

AS204-80LF-EVB

Available from 1 distributors
Mfr Name: Skyworks Solutions
Skyworks Solutions
Evaluation board for Skyworks AS204-80 SP4T nonreflective switch with integrated driver. Frequency range 300kHz to 3.5GHz, low insertion loss, high isolation.
✓ Total Stock: 6 pcs

AS204-80LF-EVB Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
6 pcs
On Request
6 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AS204-80LF-EVB Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Approval Agency
Automotive Grade
For Use With
Frequency
Industrial Grade
Medical Grade
Military Grade
Storage Temperature
Supplied Contents
Supply Current
Supply Voltage
Thermal Resistance
Type
View Similar Products (0)

AS204-80LF-EVB Description

Short technical summary and product information.

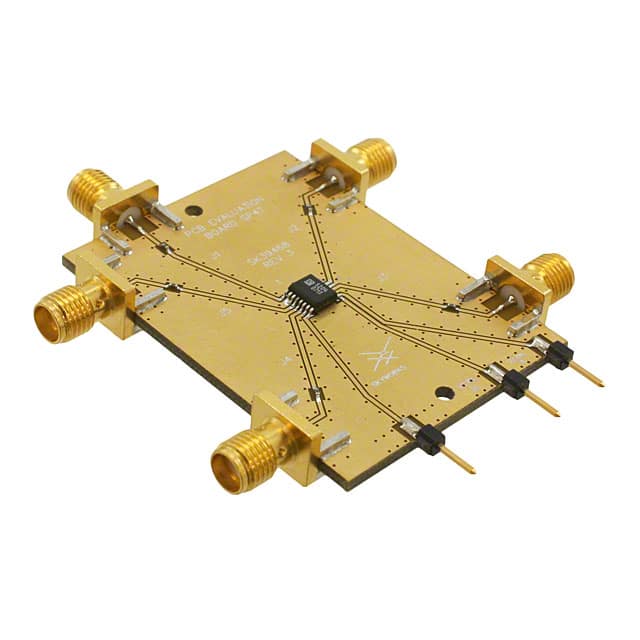

The Skyworks AS204-80LF-EVB is an evaluation board designed for the AS204-80LF GaAs IC SP4T nonreflective switch with integrated driver. This board enables quick prototyping and testing of the switch's RF performance across the frequency range of 300kHz to 3.5GHz. Key specifications include low insertion loss (0.5dB typical at 0.9GHz) and high isolation (45dB typical at 0.9GHz). The switch operates from a single 5V supply with a typical current of 500µA. The evaluation board includes the AS204-80 switch IC, providing all RF ports and control logic interfaces for easy evaluation. The board is supplied with the necessary connectors and is RoHS compliant.

AS204-80LF-EVB Quick Information

Product Type: RF Evaluation Board
Series: AS204-80
Canonical Name: Skyworks Solutions AS204-80LF-EVB Evaluation Board for SP4T Nonreflective Switch
Subcategory: SP4T Nonreflective Switch

AS204-80LF-EVB Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

AS204-80LF-EVB Features

  • SP4T nonreflective switch with integrated driver.
  • Frequency range 300kHz to 3.5GHz.
  • Low insertion loss: 0.5dB typical at 0.9GHz.
  • High isolation: 45dB typical at 0.9GHz.
  • Operates from a single 5V supply.

AS204-80LF-EVB Applications

  • Ideal for cellular base station switch matrices.
  • Used for RF signal routing and switching.
  • Suitable for test and measurement equipment.
  • Enables evaluation of AS204-80LF switch performance.

AS204-80LF-EVB FAQs

6 frequently asked questions generated from this part’s specifications.
What is the supply voltage requirement for the AS204-80LF-EVB?

The evaluation board requires a 5V supply (typical, 4.8V min, 5.2V max).

What is the frequency range of the AS204-80LF-EVB?

The board operates from 300kHz to 3.5GHz.

What is the typical insertion loss at 0.9 GHz?

Typical insertion loss is 0.5 dB at 0.9 GHz.

What is the isolation performance at 0.9 GHz?

Typical isolation is 45 dB at 0.9 GHz.

What is the switching time of the AS204-80LF-EVB?

Switch on/off time is 125 ns typical, rise/fall time is 75 ns typical.

Is the AS204-80LF-EVB RoHS compliant?

The evaluation board is RoHS compliant and lead-free, as per the datasheet for the AS204-80LF IC.
