| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
72,367 pcs
|
72367 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Access Time | |
| Memory Size | |
| Mounting Style | |
| Mounting Type | |
| Operating Temperature | |
| Supply Current |
The Alliance AS1C4M16PL-70BIN is a high-speed, CMOS pseudo-static random access memory (PSRAM) device organized as 64Mbit (4M x 16 bits). Designed for low-power, portable applications, this memory IC features a multiplexed address/data bus, reducing signal count and increasing read/write bandwidth.
Key electrical specifications include a 70ns random access time and a maximum clock rate of 133MHz. The device operates within a voltage range of 1.7V to 1.95V. It offers low power consumption with a typical standby current of 50µA at 25°C and a maximum of 90µA at 85°C. Deep power-down mode current is as low as <5µA typical.
This PSRAM operates across an industrial temperature range of -30°C to +85°C. It is supplied in a 49-FBGA package and is suitable for surface mounting. The device supports both asynchronous and burst operations, with features like on-chip temperature-compensated self-refresh (TCSR) and partial array refresh (PAR) for efficient operation.
Alliance Memory Inc. designs and manufactures memory solutions. This specific part, AS1C4M16PL-70BIN, is part of their CellularRAM product family, offering a balance of performance and low power consumption for embedded systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.28 | $1.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AS1C4M16PL-70BIN has a memory size of 64Mbit.
The access time for the AS1C4M16PL-70BIN is 70ns.
The operating voltage range for the AS1C4M16PL-70BIN is 1.7V to 1.95V.
The maximum clock frequency supported is 133MHz.
The operating temperature range is -30°C to +85°C.

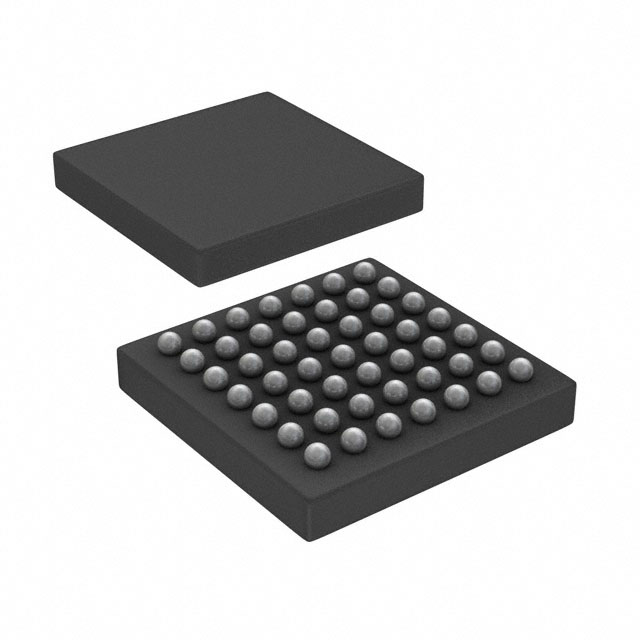

The AS1C4M16PL-70BIN is supplied in a 49-FBGA package.
The RoHS status is RoHS3 Compliant.
