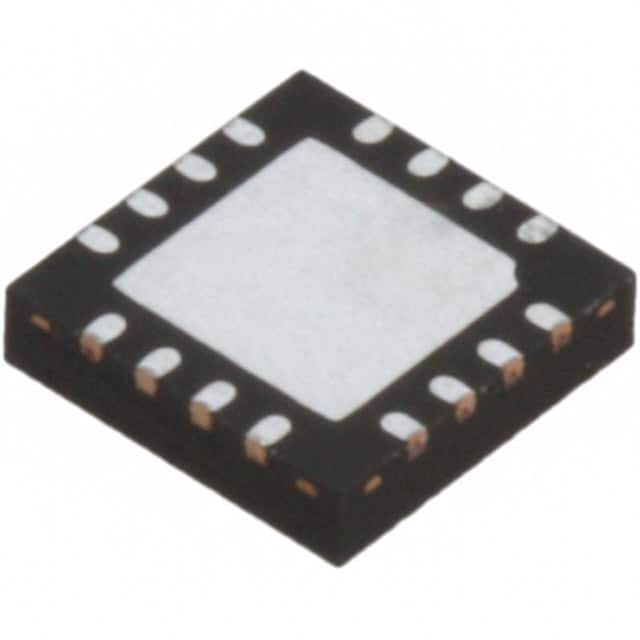

The AS196-307LF from Skyworks Solutions is a high-isolation Single Pole Double Throw (SPDT) nonreflective switch. It utilizes GaAs FET IC technology and is packaged in a 16-lead LPCC (4x4 mm) package, suitable for surface mount applications.
This switch operates over a wide frequency range from 300 kHz to 6 GHz. Key electrical specifications include insertion loss as low as 0.9 dB (typ.) at 2 GHz and up to 55 dB isolation at 0.9 GHz and 1.9 GHz. It supports a supply voltage range of 2.6V to 5V and features positive voltage control.
The AS196-307LF is designed for applications requiring critical synthesizer isolation, such as base stations. Typical applications include GSM, PCS, WCDMA, and 2.4/5.8 GHz ISM bands. The switch offers a P1dB of 27 dBm and an IIP3 of 46 dBm at 6 GHz with a 5V control voltage.
It is available in a lead (Pb)-free and RoHS-compliant package, rated MSL-1 at 260°C per JEDEC J-STD-020. The operating temperature range is -40°C to +85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AS196-307LF operates from 300 kHz to 6 GHz.
The typical insertion loss at 6 GHz is 1.6 dB.
The typical isolation at 2 GHz is 50 dB.
The AS196-307LF is supplied in a 16-LPCC (4x4 mm) package.
The operating temperature range is -40°C to +85°C.
The AS196-307LF is RoHS3 Compliant.
The Moisture Sensitivity Level is 1.
