| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
54,000 pcs
|
54000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5,145 pcs
|
5145 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4,756 pcs
|
4756 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4,045 pcs
|
4045 pcs | On Request | 1 | On Request | On Request | 13+ | On Request | On Request | |
|
1,740 pcs
|
1740 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
138 pcs
|
138 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | 2106 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Circuit | |
| Frequency Range | |
| Halogen Free | |
| IIP3 | |
| Impedance | |
| Insertion Loss | |
| Isolation | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| P1dB | |
| RF Type | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Test Frequency | |
| Topology | |
| Voltage |
The Skyworks Solutions AS179-92LF is a Single Pole Double Throw (SPDT) RF switch with a frequency range of 20MHz to 3GHz. This component is designed for applications requiring efficient RF signal switching.
Key electrical specifications include an insertion loss of 0.4dB and an isolation of 23dB at 3GHz. The device exhibits a P1dB of 34dBm and an IIP3 of 50dBm, indicating robust performance under signal stress. It operates with a 3V supply voltage and features a 50 Ohm impedance, making it compatible with standard RF systems.
The AS179-92LF is suitable for various wireless communication standards including 802.11b, g, Bluetooth, and WLAN. Its reflective topology and surface mount capability simplify integration into compact designs.

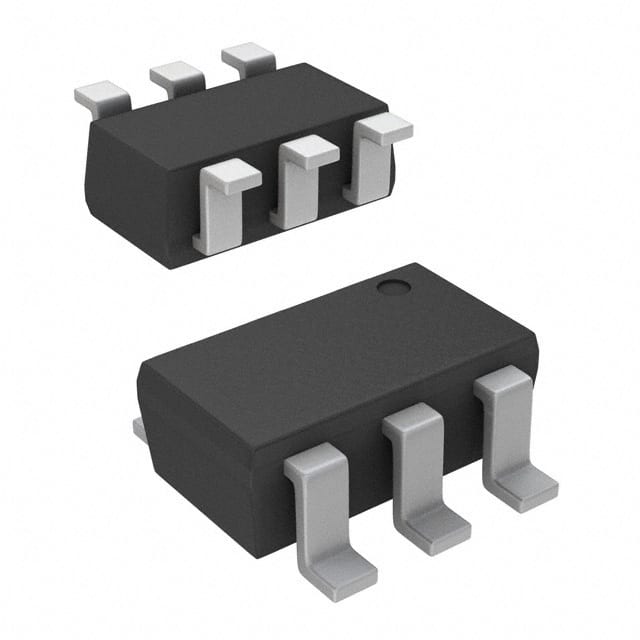

This RF switch is housed in a SC-70-6 package, also referred to as SC-88 or SOT-363, and is designed for surface mounting. The operating temperature range is from -40°C to 85°C, ensuring reliable performance in diverse environmental conditions.
The AS179-92LF operates at 3V.
The AS179-92LF is available in a SC-88, SC-70-6, or 6-TSSOP, SC-88, SOT-363 package and is designed for surface mounting.
The AS179-92LF has an operating temperature range of -40°C to 85°C.
The AS179-92LF is RoHS3 Compliant.
The AS179-92LF operates over a frequency range of 20MHz to 3GHz.
The AS179-92LF has an insertion loss of 0.4dB and an isolation of 23dB.
The AS179-92LF has a P1dB of 34dBm and an IIP3 of 50dBm.
