The AS1369-BWLT-18 from ams OSRAM is a linear, low dropout (LDO) voltage regulator designed for power management applications. It provides a stable 1.8V fixed output voltage, capable of supplying up to 200mA of current. The device accepts an input voltage range up to 5.5V, making it suitable for various power supply designs.
Key electrical characteristics include a low voltage dropout of 0.2V at 200mA and a low quiescent current of 50µA, with a maximum supply current of 60µA. Protection features such as over-current and over-temperature protection are integrated for enhanced reliability. The regulator operates across a wide temperature range of -40°C to 125°C.

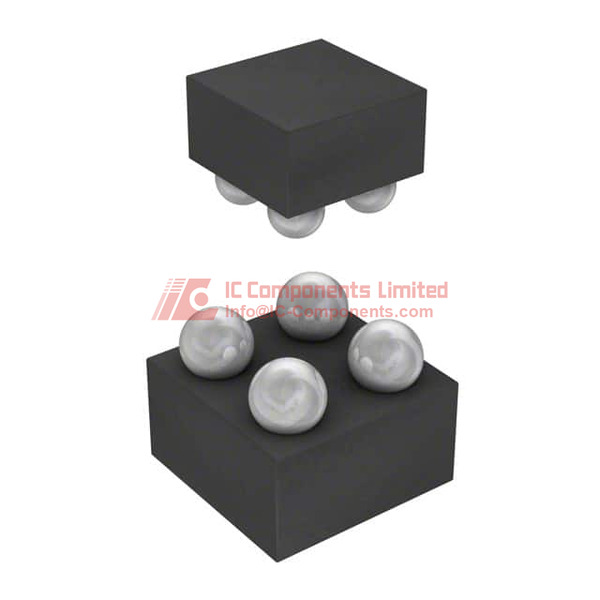

This component is supplied in a compact 4-WLCSP (Wafer Level Chip Scale Package) measuring 0.97x0.97mm, designed for surface mount applications. The packaging is tape and reel for automated assembly processes. Its small footprint and efficient operation make it ideal for space-constrained electronic devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.87 | $1.87 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is fixed at 1.8V.
-40°C to 125°C.
It uses a 4-UFBGA (WLCSP) package.
Yes, it includes over-temperature protection.
The maximum input voltage is 5.5V.
