| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
305 pcs
|
305 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Durability | |
| Insulation Resistance | |
| Operating Temperature | |
| SVHC Present | |
| Voltage Rating |

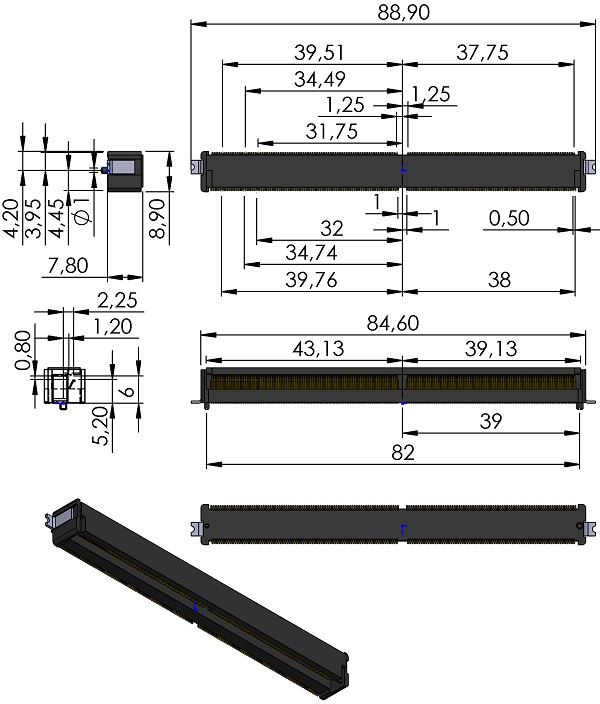

This Foxconn AS0B821-S78B-7H is an MXM socket, a type of board-to-board connector assembly. It is designed for surface mounting, providing a reliable connection between PCBs. The connector features a voltage rating of 50V DC per contact and an insulation resistance of 250 MΩ minimum at 500V DC.
With a durability rating of 30 mating cycles, this connector is suitable for applications requiring repeated connections. The operating temperature range is from -40°C to +85°C, making it adaptable to various environmental conditions. This MXM socket is part of the NVIDIA's Mobile PCI Express Module electromechanical specification.
Additional specifications such as pitch, current rating, and specific lead styles are not detailed in the available information but are crucial for design integration. The part number AS0B821-S78B-7H is associated with Foxconn HON HAI PRECISION IND. CO., LTD. from Taiwan.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The voltage rating is 50V DC per contact.
The operating temperature range is -40°C to +85°C.
It is rated for 30 mating cycles.
The insulation resistance is 250 MΩ minimum at 500V DC.
It uses a surface mount type.
