| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,500 pcs
|
1500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ESR (Equivalent Series Resistance) | |
| Frequency | |
| Frequency Stability | |
| Frequency Tolerance | |
| Height | |
| Length | |
| Load Capacitance | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| SVHC Present | |
| Storage Temperature | |
| Type | |
| Width |

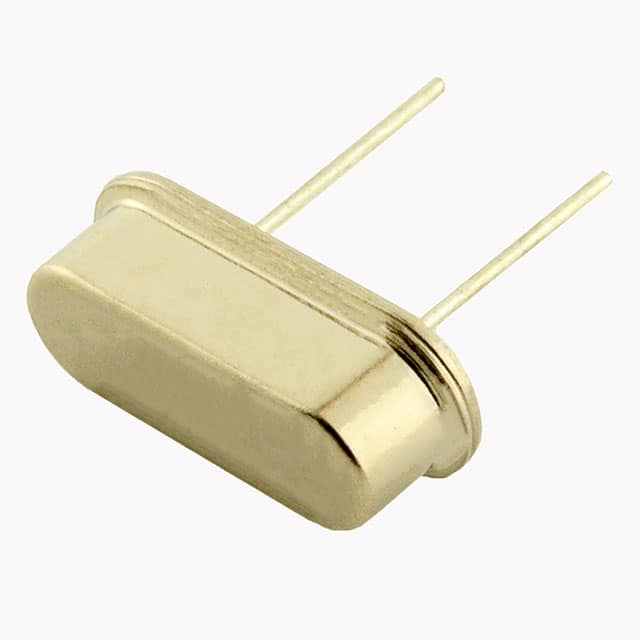

The AS-3.579545-18 is a fundamental mode MHz crystal from Raltron Electronics, operating at 3.579545 MHz. It features a load capacitance of 18 pF and an equivalent series resistance of 180 Ω, ensuring stable oscillation. The crystal offers a frequency tolerance of ±30 ppm and a frequency stability of ±50 ppm over an operating temperature range of -20°C to +70°C. Housed in an HC-49/US through-hole package, it measures 11.35 mm x 5.00 mm x 3.50 mm, making it suitable for standard PCB mounting. This crystal is commonly used in timing and clock generation circuits for microcontrollers, consumer electronics, and communication devices where reliable frequency reference is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.15 | $0.15 |
| 10+ | $0.13 | $0.13 |
| 25+ | $0.13 | $0.13 |
| 50+ | $0.12 | $0.12 |
| 100+ | $0.12 | $0.12 |
| 250+ | $0.11 | $0.11 |
| 500+ | $0.11 | $0.11 |
| 1,000+ | $0.10 | $0.10 |
| 3,000+ | $0.09 | $0.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The crystal operates at 3.579545 MHz.
The load capacitance is 18 pF.
The ESR is 180 Ω.
The operating temperature range is -20°C to 70°C.
The package is HC-49/US through hole.
Yes, it is listed as RoHS3 compliant, but this is unverified.
The frequency tolerance is ±30 ppm.
