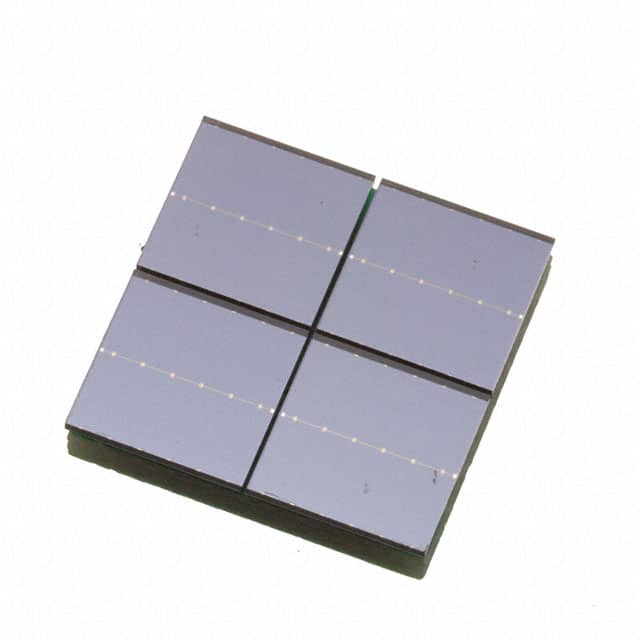

The ARRAYJ-60035-4P-BGA from ON Semiconductor is a high fill-factor Silicon Photomultiplier (SiPM) array designed for sensitive light detection. This array utilizes J-Series SiPM sensors mounted on a PCB with minimal dead space, achieving an industry-leading fill factor of up to 90%.
Key electrical characteristics include an active area of 100mm² and a peak sensitivity wavelength of 420nm. The sensors are summed together to form a common I/O, with individual fast output and standard I/O routed to separate pins. The fast output is not available on the 2x2 array variant.
This specific model, ARRAYJ-60035-4P-BGA, comes in a 9-EBGA package and is designed for surface mounting. It is RoHS3 Compliant and REACH Unaffected, with a Moisture Sensitivity Level (MSL) of 1 (Unlimited).
The ArrayJ products with BGA packages can be reflow soldered to user readout boards or purchased ready-mounted on a pinned PCB evaluation board for easy testing. This configuration is ideal for applications requiring high fill-factor SiPM arrays for precise light measurement.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The active area of the ARRAYJ-60035-4P-BGA is 100 mm².
The peak sensitivity wavelength for the ARRAYJ-60035-4P-BGA is 420nm.
The ARRAYJ-60035-4P-BGA is supplied in a 9-EBGA package.
The ARRAYJ-60035-4P-BGA is designed for surface mounting.
