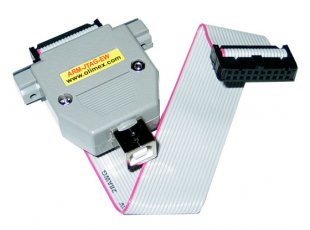

The ARM-JTAG-EW from Olimex LTD is a JTAG probe developed for debugging ARM microcontrollers, particularly those supported by IAR Embedded Workbench. It provides a USB full-speed connection to the PC and features a standard ARM 2x10 pin JTAG connector.
This JTAG probe supports ARM targets operating within a voltage range of 2.0 to 5.0V DC. It offers a JTAG and SWD TCK frequency range from 6kHz to 12MHz and an SWO frequency range from 1kHz to 3MHz. A notable feature is its ability to measure target current consumption and provide 5.0V DC power to the target via pin 19 of the JTAG connector.
The device emulates the IAR Systems' J-LINK API, allowing it to function like a standard J-LINK debugger. It also includes advanced features such as external breakpoints that can be triggered by target power consumption, external signal edges, or analogue signal window values, features typically found in more expensive debugger tools.
The ARM-JTAG-EW has dimensions of 50x40 mm and comes with a 20 cm JTAG cable. It requires a standard USB A-B cable for PC connection and is compatible with IAR Embedded Workbench 5.30 and later versions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ARM-JTAG-EW supports ARM targets working in the voltage range of 2.0–5.0V DC.
The JTAG and SWD TCK frequency range is 6kHz – 12MHz.
The dimensions are 50x40 mm, and it includes a 20 cm JTAG cable.
Yes, it can provide 5.0V DC power to the target via pin 19 of the JTAG connector.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is Level 1.
