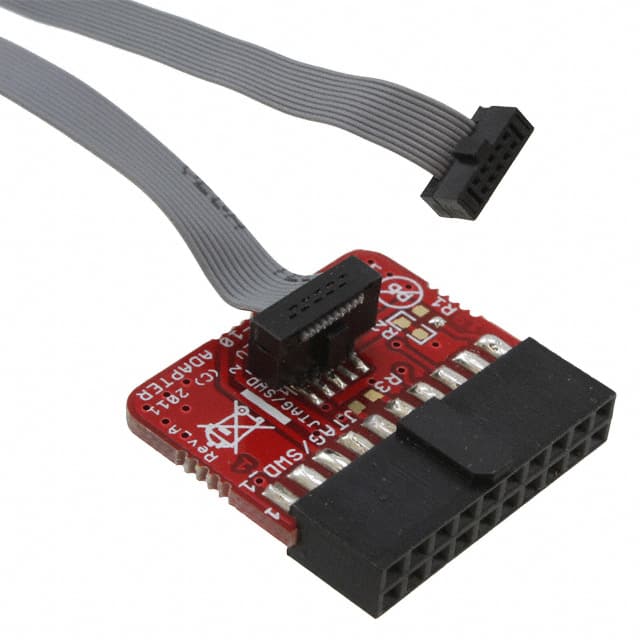

The ARM-JTAG-20-10 is a plug-in JTAG adapter from Olimex LTD designed to connect standard 20-pin 0.1" pitch JTAG programmers (such as ARM-USB-OCD, ARM-USB-OCD-H, ARM-USB-TINY, and ARM-USB-TINY-H) to target boards with a compact 10-pin 0.05" pitch connector.
This adapter follows the official ARM JTAG layout and works with most JTAG/SWD programmers and debuggers. The 20-pin side uses a 0.1" pitch header, while the 10-pin side uses a 0.05" pitch connector. A 10 cm (4 in) cable connects the two sections. The adapter dimensions are 25 x 25 mm (1 x 1 in).
5V target powering through the adapter is not enabled by default. The adapter is suitable for programming and debugging ARM MCUs that support JTAG or SWD interfaces.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.84 | $5.84 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 20-pin side has a 2.54 mm (0.1 in) pitch.
The 10-pin side has a 1.27 mm (0.05 in) pitch.
No, 5V target powering through the adapter is not enabled by default.
The cable length is 10 cm (4 in).
The adapter dimensions are 25 x 25 mm (1 x 1 in).
