| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,870 pcs
|
1870 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Connector Type | |
| Contact Finish | |
| Features | |
| Height Above Board | |
| LED Color | |
| Mounting Type | |
| Number of Cores per Jack | |
| Number of Ports | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Orientation | |
| SVHC Present | |
| Shielding | |
| Tab Direction | |
| Tape & Reel | |
| Termination |

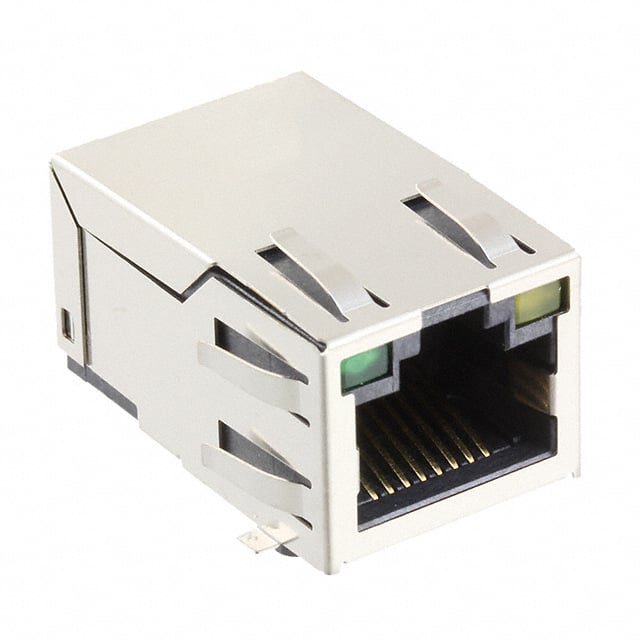

The ARJE-0034 from Abracon LLC is a single-port RJ45 modular jack with integrated magnetics designed for 10/100 Base-T Ethernet applications. It supports AutoMDIX, enabling automatic crossover detection. The connector features a right-angle (90°) orientation with tab up, making it suitable for edge-mount or compact designs. It is shielded with an EMI finger to reduce electromagnetic interference. The connector includes green and yellow LED indicators for link/activity status. It has 4 cores per jack and is terminated via solder. The mounting type is surface mount with board guide and solder retention features. The operating temperature range is -40°C to 85°C. The height above board is 13.87mm. Contact finish is tin. This connector is RoHS3 compliant and has an MSL of 1 (unlimited). It is suitable for use in networking equipment, switches, routers, and other Ethernet-enabled devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.88 | $4.88 |
| 10+ | $4.15 | $4.15 |
| 25+ | $3.89 | $3.89 |
| 50+ | $3.71 | $3.71 |
| 110+ | $3.34 | $3.34 |
| 220+ | $3.24 | $3.24 |
| 440+ | $3.05 | $3.05 |
| 990+ | $2.97 | $2.97 |
| 2,420+ | $2.89 | $2.89 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Surface mount.
1 port.
4 cores per jack.
-40°C to 85°C.
10/100 Base-T with AutoMDIX.
Green and yellow.
Yes, shielded with an EMI finger.
