| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Common Mode Rejection | |
| Connector Type | |
| Crosstalk | |
| Dimensions | |
| Features | |
| Height Above Board | |
| Hipot | |
| Inductance | |
| Insertion Loss | |
| LED Color | |
| Mating Cycles | |
| Military Grade | |
| Mounting Type | |
| Number of Cores per Jack | |
| Number of Ports | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Package Type | |
| Return Loss (Minimum @ 1-10 MHz) | |
| Return Loss (Minimum @ 10-30 MHz) | |
| Return Loss (Minimum @ 30-60 MHz) | |
| Return Loss (Minimum @ 60-80 MHz) | |
| Return Loss (Minimum @ 80-100 MHz) | |
| SVHC Present | |
| Shielding | |
| Standard Package Qty | |
| Storage Temperature | |
| Tab Direction | |
| Tape & Reel | |
| Termination | |
| Turn Ratio |

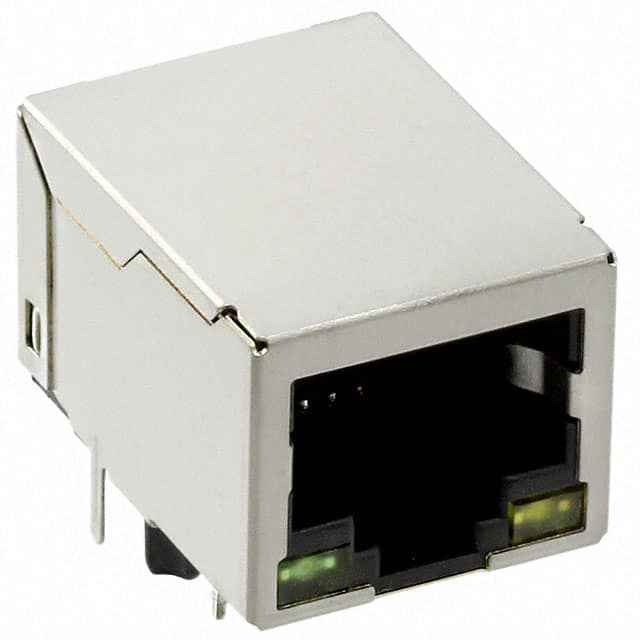

The Abracon ARJC02-111009D is a 1-port shielded RJ45 connector jack with integrated magnetics, designed for 10/100 Base-TX Ethernet applications. It features a through hole mounting type with a right angle (90°) orientation and a tab-down configuration. The jack includes green and yellow LED indicators and a board guide feature for ease of assembly.
Electrical specifications include a 1CT:1CT turn ratio for both transmit and receive channels, minimum inductance of 350 µH at 100kHz/0.1V with 8mA bias, and maximum insertion loss of 1.0 dB from 1-100MHz. Return loss meets -18 dB at 1-10MHz, -16 dB at 10-30MHz, -14 dB at 30-60MHz, -12 dB at 60-80MHz, and -10 dB at 80-100MHz. Common mode rejection and crosstalk are both minimum -35 dB from 1-100MHz. Hipot rating is 1500 Vrms.
The connector is packaged in trays with a standard quantity of 100 pieces per tray. It is RoHS3 compliant and has an operating temperature range of 0°C to +70°C with a storage range of -25°C to +85°C. The part is designed for use with leading PHY IC manufacturers and provides signal conditioning, EMI suppression, and signal isolation.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.84 | $7.84 |
| 10+ | $6.67 | $6.67 |
| 25+ | $6.25 | $6.25 |
| 50+ | $5.95 | $5.95 |
| 100+ | $5.67 | $5.67 |
| 250+ | $5.31 | $5.31 |
| 500+ | $5.06 | $5.06 |
| 2,000+ | $4.58 | $4.58 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
0°C to +70°C
-25°C to +85°C
1CT:1CT for both Tx and Rx
350 µH at 100kHz/0.1V with 8mA bias
1.0 dB from 1-100MHz
1500 Vrms
750 cycles
