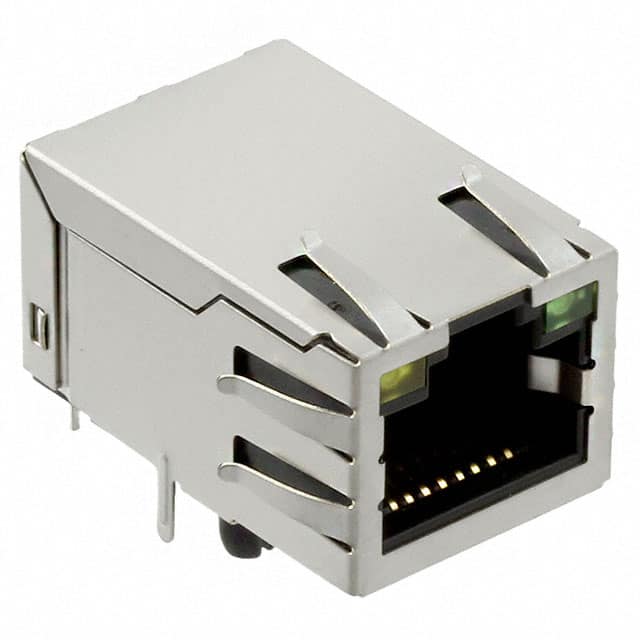

The ARJC01-111002AR from Abracon LLC is a 1-port RJ45 modular connector jack with integrated magnetics, designed for 10/100 Base-TX Ethernet applications. This component provides signal conditioning, EMI suppression, and signal isolation, complying with IEEE 802.3 standards. It supports AutoMDIX and is compatible with leading PHY IC manufacturers such as Broadcom, Marvell, and Microsemi.
Electrical specifications include a minimum inductance of 350 µH at 100kHz/0.1V@8mA, a maximum insertion loss of -1.0 dB from 1-100 MHz, and a minimum return loss ranging from -18 dB (1-10 MHz) to -10 dB (80-100 MHz). Common mode rejection and crosstalk are both minimum -35 dB over 1-100 MHz. The isolation voltage (hipot) is 1500 Vrms.
Mechanically, the connector features a 90° right-angle orientation with the tab facing up, through-hole solder termination, and a shielded design with an EMI finger. It includes a board lock for secure PCB mounting. The package is a tray of 100 pieces, with dimensions of 16.2 x 13.55 x 25.3 mm and a height above board of 0.534" (13.55 mm). The operating temperature range is 0°C to 70°C, with storage from -40°C to +85°C. The connector is rated for 750 mating cycles.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.36 | $7.36 |
| 10+ | $6.26 | $6.26 |
| 20+ | $5.87 | $5.87 |
| 50+ | $5.59 | $5.59 |
| 100+ | $5.31 | $5.31 |
| 200+ | $4.92 | $4.92 |
| 500+ | $4.74 | $4.74 |
| 1,000+ | $4.52 | $4.52 |
| 2,000+ | $4.49 | $4.49 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1 port.
Through Hole.
90° Angle (Right).
Yes, shielded with EMI finger.
Yellow-Green.
0°C to 70°C.
350 µH minimum at 100kHz/0.1V@8mA.
