| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | 1011 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Rating (Current) | |
| Impedance | |
| Lead Style | |
| Mounting Type | |
| Must Operate Voltage | |
| Must Release Voltage | |
| Operate Time | |
| Operating Temperature | |
| Release Time | |
| Switching Voltage | |
| Termination Style |

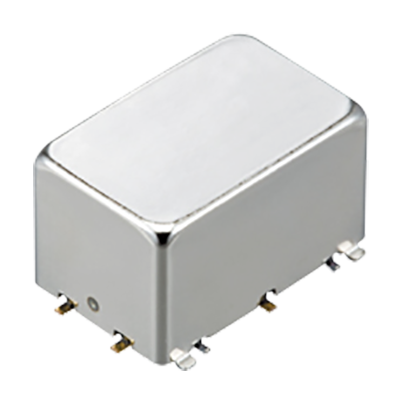

The Panasonic ARJ20A12 is a high-frequency RF relay from the RJ Relay series. It is designed for demanding applications with a maximum frequency capability of 8 GHz and a carrying power of 1W at 5 GHz. The relay features a DPDT contact form, capable of switching up to 30VDC and 300mA.
With a nominal coil voltage of 12VDC and a coil current of 16.7 mA, the ARJ20A12 has an operate and release time of 5 ms. It operates within a temperature range of -30°C to 70°C. The relay is designed for surface mounting with a gull wing termination style, making it suitable for modern PCB assembly processes.
This component is specified with a 50 Ω impedance, crucial for maintaining signal integrity in RF circuits. It is also noted as RoHS3 Compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ARJ20A12 relay is capable of a maximum frequency of 8 GHz.
The contact rating for the ARJ20A12 relay is 300 mA.
The coil voltage for the ARJ20A12 relay is 12VDC.
The operating temperature range for the ARJ20A12 relay is -30°C to 70°C.
The ARJ20A12 relay is a surface mount device.
