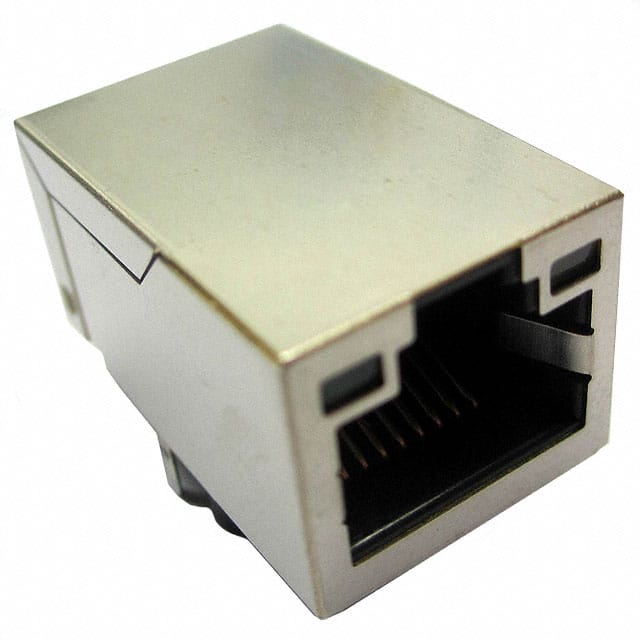

The Abracon ARJ11D-MDSE-A-B-GMU2 is a single-port RJ45 modular connector jack with integrated magnetics, designed for 10/100 Base-T Ethernet applications. It features a through-hole, right-angle (90°) mounting style with a tab-up orientation. The connector is shielded and includes board locks for secure PCB attachment. It supports AutoMDIX and is suitable for CAT 5 and CAT 6 cabling.
Key electrical specifications include 1CT:1CT turns ratio for both TX and RX channels, insertion loss of -1 dB typical (1-65 MHz), and return loss of -20 dB typical (1-10 MHz). Crosstalk is -40 dB typical (1-30 MHz) and common mode rejection is -30 dB typical (1-50 MHz). The isolation voltage rating is 1500 Vrms at 60 Hz.
The part is RoHS3 compliant and operates over a temperature range of 0°C to +70°C. It is packaged in a compact 16.26 x 13.84 x 21.59 mm case and comes with green and yellow LED indicators.
