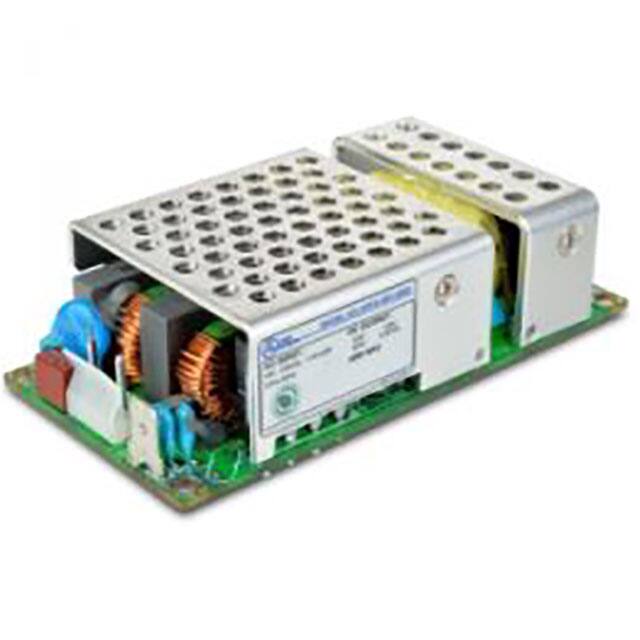

The Aras Power Technologies ARFS-6501-12S is a 65 Watt, single output AC/DC switching power supply designed for ITE (Commercial) applications. It provides a stable 12VDC output with a maximum current of 5.42A.
Key electrical specifications include an input voltage range of 90-264 VAC and an efficiency of 87% typical. The unit incorporates Active PFC to meet EN61000-3-2 standards and offers protections such as overvoltage, overpower, and short circuit, all in a latch-mode cycle AC input.
This power supply comes in an open frame package measuring 4.00" x 2.00" x 1.20" (101.6mm x 50.8mm x 30.5mm), suitable for chassis mounting. The operating temperature range is 0°C to 70°C, with derating above 50°C. It also boasts a high reliability rating with an MTBF of 300,000 hours at 25°C.
90-264VAC.
Open frame, chassis mount.
0°C to +70°C with derating above 50°C.
12VDC at up to 5.42A.
Overvoltage, overpower, and short circuit protection, all latch-mode requiring AC input cycle reset.
87% typical.
101.6mm x 50.8mm x 30.5mm (4.00" x 2.00" x 1.20").
