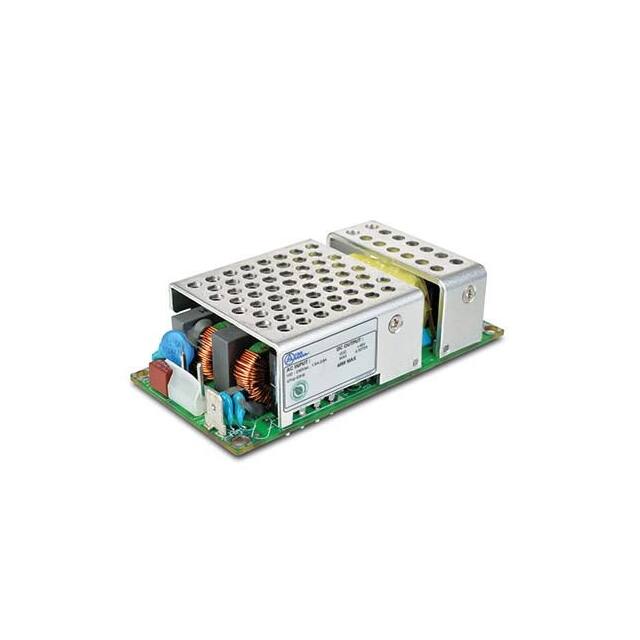

ARFS-3001-05 The Aras Power Technologies ARFS-3001-05 is a 30W AC/DC converter with a 5V output. It features an open frame design for chassis mounting.
Mfr Part #:

ARFS-3001-05

Mfr Name: Aras Power Technologies
Aras Power Technologies
The Aras Power Technologies ARFS-3001-05 is a 30W AC/DC converter with a 5V output. It features an open frame design for chassis mounting.
Stock on Request

ARFS-3001-05 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Efficiency
Failure Rate
Features
Mounting Type
Number of Outputs
Operating Temperature
Power
Power (Watts)
SVHC Present
Standard Number
Type
Voltage

ARFS-3001-05 Description

Short technical summary and product information.

The Aras Power Technologies ARFS-3001-05 is an AC/DC converter designed for commercial ITE applications. It delivers a 5V output voltage with a maximum current of 6A, providing a total power of 30W. This open frame converter is suitable for chassis mounting.



Key features include PFC, Standby Output, and Universal Input, operating within a wide input voltage range of 90 to 264 VAC. The efficiency is rated at 87%, and it operates within a temperature range of 0°C to 70°C with derating. The unit has an isolation voltage of 1.5 kV and is compliant with standard 60950-1.



Its dimensions are 101.6mm x 50.8mm x 26.5mm. The converter is approved by CB and cTUVus agencies, indicating adherence to safety standards for commercial applications.

ARFS-3001-05 Quick Information

Product Type: AC/DC Converter
Series: ARFS-3001
Canonical Name: Aras Power Technologies ARFS-3001-05 AC/DC Converter
Subcategory: AC/DC Converters

ARFS-3001-05 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ARFS-3001-05 Features

  • 30W AC/DC converter with 5V output.
  • Open frame design for chassis mounting.
  • Features PFC and Universal Input.
  • 87% efficiency rating.
  • Approved by CB and cTUVus.

ARFS-3001-05 Applications

  • Commercial ITE equipment power supplies
  • Industrial control system 5V power rail
  • Embedded system 30W AC-DC conversion
  • Universal input chassis mount power supply

ARFS-3001-05 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage of the ARFS-3001-05?

The ARFS-3001-05 provides a single output voltage of 5V.

What is the maximum output current for the ARFS-3001-05?

The maximum output current for the ARFS-3001-05 is 6A.

What is the power rating of the ARFS-3001-05?

The ARFS-3001-05 has a power rating of 30W.

What type of mounting does the ARFS-3001-05 support?

The ARFS-3001-05 supports chassis mounting.

What is the operating temperature range for this AC/DC converter?

The operating temperature range for the ARFS-3001-05 is 0°C to 70°C with derating.

What are the key features of the ARFS-3001-05?

Key features include PFC, Standby Output, and Universal Input.

What are the dimensions of the ARFS-3001-05?

The dimensions are 101.6mm x 50.8mm x 26.5mm.
