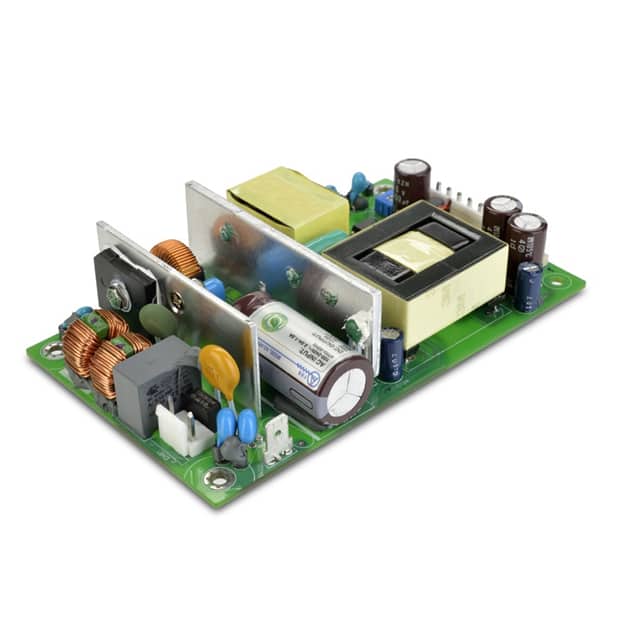

The Aras Power Technologies ARFL-2011-12S is a 200-watt, single-output AC/DC converter designed for ITE (Commercial) applications. It operates with a universal input voltage range of 90-264 VAC and features Active PFC to meet EN61000-3-2 standards.
This converter delivers a stable 12VDC output with a setpoint accuracy of +/- 1% and a maximum current of 16.7A, providing a total output power of 200W. It boasts a high efficiency of 90% typical and includes protections such as overvoltage, overpower, and short circuit in latch-mode. The unit operates within a temperature range of 0°C to 70°C.
The ARFL-2011-12S is housed in an open frame package measuring 3" x 5" x 1.24", designed for chassis mounting. It meets FCC Class B and EN55022 Class B emissions standards and complies with various EN61000 immunity standards, including electrostatic discharge, radiated susceptibility, EFT/bursts, and surges.
The output voltage is +12.0 VDC with a setpoint accuracy of +/- 1%.
The maximum output current is 16.7 A.
The input voltage range is 90-264 VAC.
The typical efficiency is 90%.
The operating temperature range is 0°C to +70°C.
It is an open frame package designed for chassis mounting.
Yes, it features Active PFC to meet or exceed EN61000-3-2.
