| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

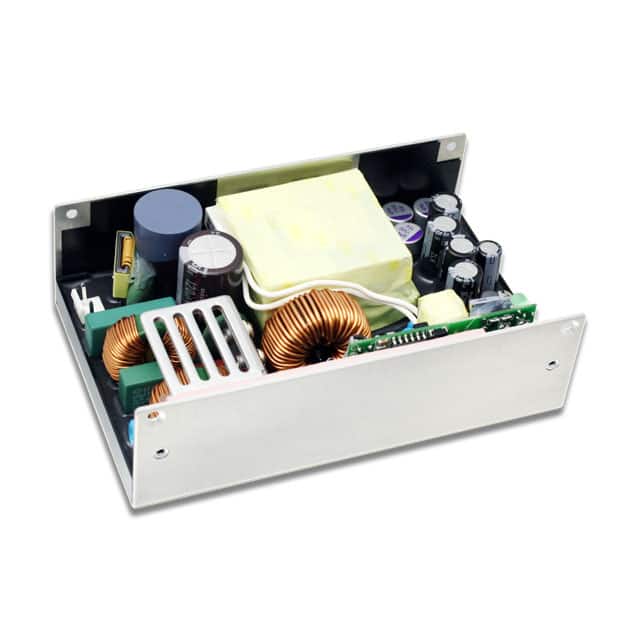

The ARCH ARF500U-48S is an AC/DC converter designed for commercial ITE applications. It delivers 330W of power with a single 48V output voltage and a maximum output current of 10.41A.
This converter operates with an input voltage range of 90-264 VAC or 127-370 VDC and boasts a high efficiency of 92%. Key features include adjustable output, DC input capability, Power Factor Correction (PFC), remote on/off, remote sense, and a standby output. The isolation voltage is rated at 4 kV.
Designed with an open frame construction, the ARF500U-48S is intended for chassis mounting. Its dimensions are 5.11" L x 3.25" W x 1.57" H (129.8mm x 82.6mm x 39.9mm). The operating temperature range is -30°C to 80°C, with derating applied at higher temperatures. It complies with safety standards 60950-1 and 62368-1, and holds agency approvals from CB, CE, and cURus.
The input voltage range is 90-264 VAC or 127-370 VDC.
The output is 48V at 10.41A.
The power rating is 330W continuous, 500W with forced air cooling.
The operating temperature range is -30°C to 80°C with derating.
The efficiency is 92%.
The isolation voltage is 4 kV.
The approvals are CB, CE, and cURus.
