| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

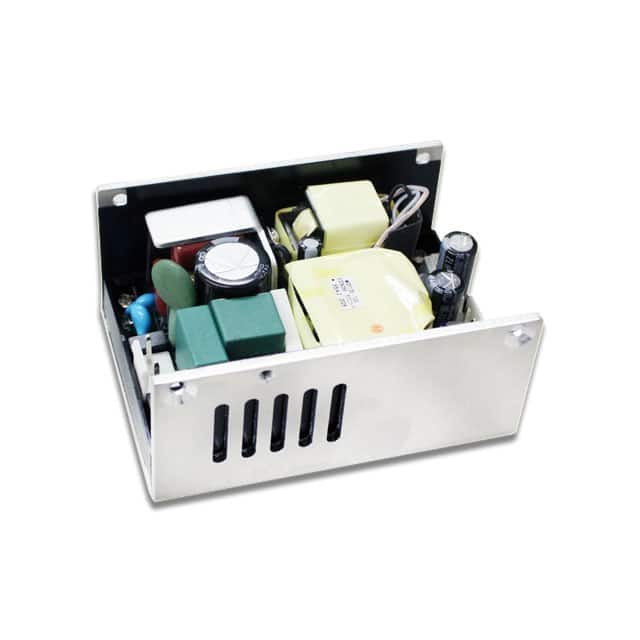

The ARCH ARF130U-48S is an open frame AC/DC converter designed for ITE (Commercial) applications. It provides a power output of 125W, with a higher rating of 130W under forced air conditions.
Key electrical specifications include a 4 kV voltage rating and an output current of 2.708 A. The converter operates efficiently at 91% and features adjustable output, power factor correction (PFC), and universal input capabilities. Its operating temperature range is -30°C to 80°C, with derating applied at higher temperatures.
Mechanically, this unit is designed for chassis mounting and has dimensions of 80.0mm x 59.7mm x 38.1mm. It adheres to the standard 62368-1 safety standard and carries approvals from CB, CE, and cURus.
Environmental compliance includes RoHS3 compliance and an MSL rating of 1. The REACH status is unaffected.
-30°C to 80°C with derating.
Chassis Mount.
48V.
125W (130W with forced air).
CB, CE, cURus, and complies with 62368-1.
91%.
80mm x 59.7mm x 38.1mm.
