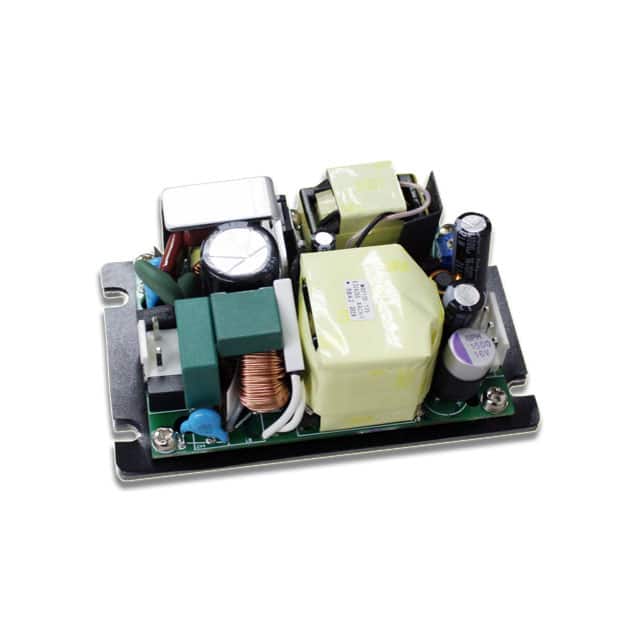

The ARCH ARF130O-48S is a versatile AC/DC converter designed for ITE (Commercial) applications. This open frame unit provides a 48V output and delivers up to 125W of power, with a higher rating of 130W under forced air conditions.
Key electrical specifications include an efficiency of 91%, adjustable output, Power Factor Correction (PFC), and universal input capability. It operates within a temperature range of -30°C to 70°C with derating. The converter also features 4 kV of isolation voltage and is compliant with standard 62368-1.
Mechanically, the ARF130O-48S is designed for chassis mounting and has dimensions of 91.2mm x 54.6mm x 34.5mm. It has a single output and an output current rating of 2.708A.
Environmental compliance includes RoHS3 compliance and an MSL 1 rating. Approval agencies include CB, CE, and cURus.
The output voltage is 48V.
The power rating is 125W, or 130W with forced air.
It supports chassis mounting.
The operating temperature range is -30°C to 70°C with derating.
The dimensions are 91.2mm x 54.6mm x 34.5mm.
It is RoHS3 Compliant.
The MSL is 1 Unlimited.
