| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

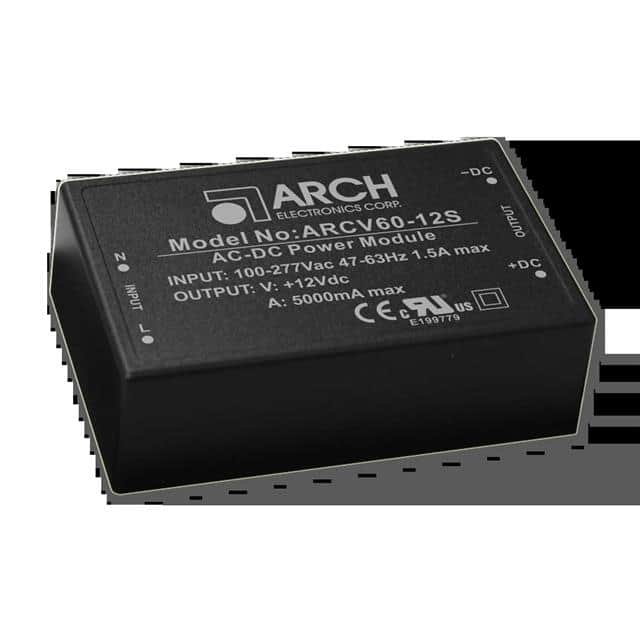

The ARCH ARCV60-12S is an enclosed AC-DC power module with a power rating of 60W. It features a wide input voltage range of 90 to 305 VAC and 120 to 430 VDC, making it suitable for universal applications. The module has an efficiency of 90% and provides a single output.
Designed for Through Hole mounting, this power module comes in a 4-DIP module package. Its dimensions are 74.2mm in length, 47.0mm in width, and 23.1mm in height. The operating temperature range is -40°C to 85°C with derating.
Key features include universal input and suitability for ITE (Commercial) and Household Appliances. It is approved by CB, CE, and cURus agencies and complies with standards 60335-1 and 62368-1. The RoHS status is RoHS3 Compliant, and the Moisture Sensitivity Level is 1 Unlimited.
The input voltage range is 90 to 305 VAC and 120 to 430 VDC.
The output current is 5A.
The operating temperature range is -40°C to 85°C, with derating.
It is available in a 4-DIP Module package.
