AR1020-I/ML The AR1020-I/ML is a 10-bit resistive touch screen controller from Microchip Technology. It supports 4, 5, or 8 wire resistive touchscreens and communicates via I²C or SPI.
Mfr Part #:

AR1020-I/ML

Available from 1 distributors
Mfr Name: Microchip Technology
Microchip Technology
The AR1020-I/ML is a 10-bit resistive touch screen controller from Microchip Technology. It supports 4, 5, or 8 wire resistive touchscreens and communicates via I²C or SPI.
✓ Total Stock: 23 pcs

AR1020-I/ML Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
23 pcs
On Request
23 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AR1020-I/ML Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Interface
Mounting Type
Operating Temperature
Resolution (Bits)
Supplier Device Package
Supplier Package
Touchscreen
Voltage
View Similar Products (0)

AR1020-I/ML Description

Short technical summary and product information.

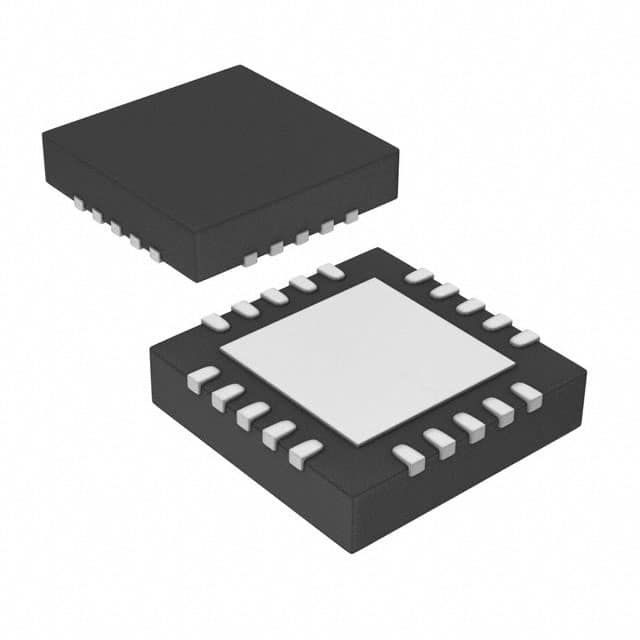

The AR1020-I/ML is a touch screen controller IC designed for resistive touchscreens. It features 10-bit resolution and supports 4, 5, or 8 wire resistive touch panels. The device operates over a supply voltage range of 2.5V to 5V and draws a typical supply current of 17 mA. Communication is available via I²C, Serial, or SPI interfaces. The controller is housed in a 20-VFQFN exposed pad package (20-QFN 4x4 mm) and is surface mountable. It is specified for an operating temperature range of -40°C to 85°C, making it suitable for industrial and automotive environments. The AR1020-I/ML is RoHS3 compliant and has an MSL of 1 (unlimited).

AR1020-I/ML Quick Information

Product Type: Touch Screen Controller
Canonical Name: Microchip Technology AR1020-I/ML Touch Screen Controller
Subcategory: Touch Screen Controllers

AR1020-I/ML Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AR1020-I/ML Features

  • 10-bit resolution for touch coordinate conversion.
  • Supports 4, 5, or 8 wire resistive touchscreens.
  • I²C, Serial, and SPI communication interfaces.
  • Wide supply voltage range: 2.5V to 5V.
  • Operating temperature range -40°C to 85°C.

AR1020-I/ML Applications

  • Used in industrial control panels with resistive touch.
  • Ideal for point-of-sale terminals and kiosks.
  • Suitable for medical device user interfaces.
  • Applied in automotive infotainment systems.

AR1020-I/ML FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the AR1020-I/ML?

2.5V to 5V.

What package does the AR1020-I/ML come in?

20-VFQFN Exposed Pad (20-QFN 4x4 mm).

What is the operating temperature range?

-40°C to 85°C.

Is the AR1020-I/ML RoHS compliant?

Yes, RoHS3 compliant.

What interface does the AR1020-I/ML support?

I²C, Serial, and SPI.

What type of touchscreen does it support?

4, 5, or 8 wire resistive.

What is the resolution of the AR1020-I/ML?

10-bit.
