| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,100 pcs
|
2100 pcs | On Request | 1 | On Request | On Request | 23+ | On Request | On Request | |
|
1,789 pcs
|
1789 pcs | On Request | 1 | On Request | On Request | 1536+ | On Request | On Request | |
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | 1536+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Active Pixel Array | |
| Frames per Second | |
| Operating Temperature | |
| Pixel Size | |
| Supplier Device Package | |
| Type | |
| Voltage |

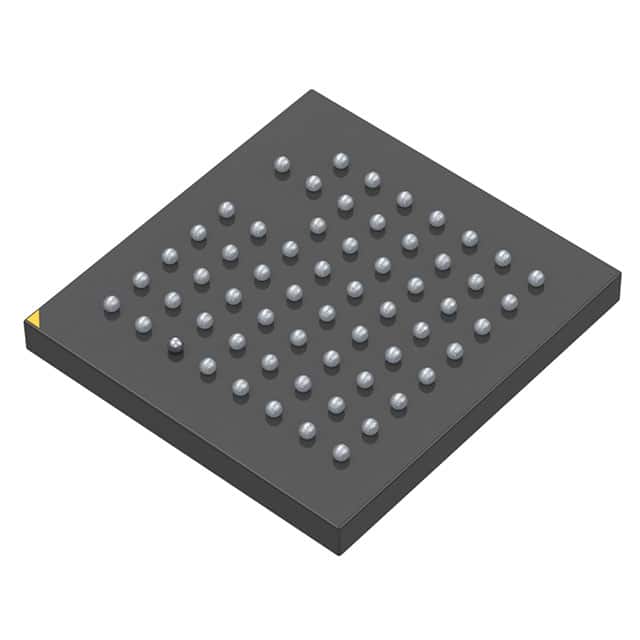

The AR0330CS1C12SPKA0-CR from On Semiconductor is a CMOS image sensor designed for various imaging applications. It boasts an active pixel array of 2304 horizontal by 1536 vertical pixels, with each pixel measuring 2.2µm by 2.2µm. This sensor operates within a temperature range of -30°C to 70°C (TJ) and supports dual voltage supplies, ranging from 1.7V to 1.9V and 2.4V to 3.1V.
The device is supplied in a 61-WFBGA, CSPBGA package, specifically a 61-ODCSP with dimensions of 6.28x6.65mm. It is capable of capturing images at up to 30 frames per second. The RoHS status is compliant, and it has a Moisture Sensitivity Level (MSL) of 1 Unlimited, indicating it is unaffected by moisture.
This image sensor is suitable for applications requiring detailed image capture and processing. Its specifications make it a viable component for embedded vision systems, automotive applications, and industrial monitoring where reliable image data is crucial.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-30°C to 70°C (TJ)
1.7V to 1.9V and 2.4V to 3.1V
2304H x 1536V
2.2µm x 2.2µm
61-WFBGA, CSPBGA
