| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15,000 pcs
|
15000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,100 pcs
|
2100 pcs | On Request | 1 | On Request | On Request | 23+ | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Active Pixel Array | |
| Automotive Grade | |
| Frames per Second | |
| Global Shutter | |
| Halogen Free | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Package Code | |
| Package Description | |
| Pixel Size | |
| Resolution Mp | |
| Sensor Size | |
| Standard Package Qty | |
| Supplier Device Package | |
| Tape and Reel | |
| Type |

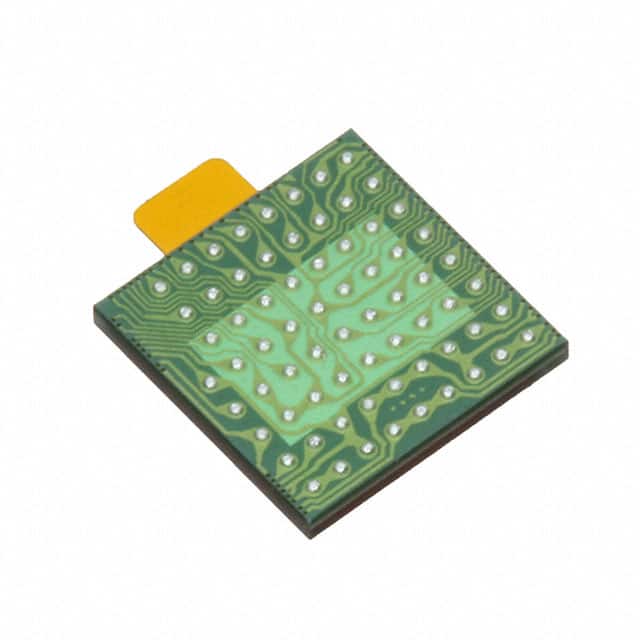

The AR0144CSSM20SUKA0-CRBR is a 1/4-inch, 1.0 Megapixel CMOS digital image sensor from On Semiconductor. It utilizes an innovative global shutter pixel design for accurate capture of moving scenes, producing clear, low-noise images in various lighting conditions.
Key specifications include an active pixel array of 1280H x 800V and a pixel size of 3µm x 3µm. The sensor supports sophisticated camera functions such as auto exposure control, windowing, and pixel-binning. It is programmable via a simple two-wire serial interface and offers both video and single-frame capture modes.
This sensor is ideal for applications requiring fast and accurate image capture, such as barcode scanning, 3D scanning, positional tracking, and machine vision. Its small form factor makes it suitable for space-constrained devices like handheld scanners and head-mounted displays.
The AR0144CSSM20SUKA0-CRBR comes in an ODCSP-69 package, suitable for tape and reel packaging with a standard quantity of 3000 units. It is RoHS3 compliant and rated MSL 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AR0144CSSM20SUKA0-CRBR is a CMOS digital image sensor.
The active pixel array is 1280H x 800V, providing a resolution of 1.0 Megapixel.
The pixel size is 3µm x 3µm.
The sensor supports a frame rate of 60 frames per second.
Yes, the AR0144CSSM20SUKA0-CRBR incorporates a global shutter design.
The AR0144CSSM20SUKA0-CRBR is supplied in an ODCSP-69 package.
The standard package quantity is 3000 units.
