| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,316 pcs
|
2316 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
187 pcs
|
187 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Junction Temperature | |
| Mounting Type | |
| Operating Temperature | |
| Peak Forward Current | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style |

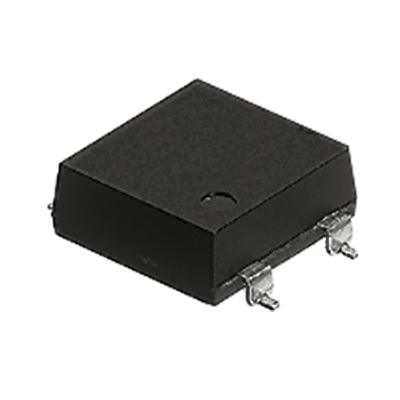

The Panasonic AQY272AX is a PhotoMOS relay designed for various electronic applications. It offers a maximum load voltage of 60V and a continuous load current of 2.0A, with a peak current capability of 6.0A.
This relay operates within a wide temperature range of -40°C to +85°C. It is housed in a Power-DIP4 package with surface mount termination, making it suitable for automated assembly processes. The device is designed for AC/DC voltage types and features a 1a output configuration.
Key electrical specifications include an LED current of 50mA, a peak forward current of 1A, and input power dissipation of 75mW. The output power dissipation is rated at 700mW, with a total power dissipation of 750mW. The dielectric strength between input and output is 2,500Vrms.
This component is supplied in tape and reel packaging, with a standard package quantity of 1,000 units. It is compliant with RoHS3 standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.17 | $1.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40 to +85 °C.
The relay is housed in a Power-DIP4 package with surface mount terminals.
The load voltage rating is 60 V.
The continuous load current is 2.0 A.
The dielectric strength (isolation voltage) is 2,500 Vrms.
The typical LED forward current is 50 mA.
The peak load current is 6.0 A.
