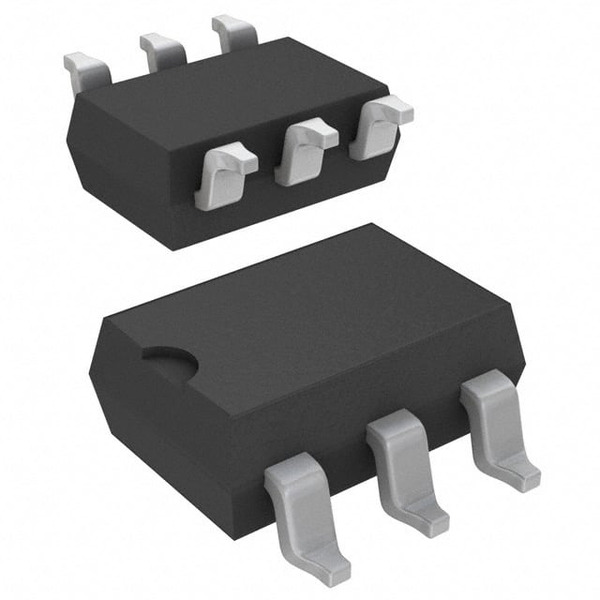

AQV212 The Panasonic Electric Works AQV212AX is a solid state relay (SSR) with a single-pole single-throw normally open (SPST-NO) output. It is designed for reliable switching of loads up to 60V and 550mA.
Mfr Part #:

AQV212

Available from 2 distributors
Mfr Name: NAIS
NAIS
The Panasonic Electric Works AQV212AX is a solid state relay (SSR) with a single-pole single-throw normally open (SPST-NO) output. It is designed for reliable switching of loads up to 60V and 550mA.
✓ Total Stock: 3,047 pcs
$ Price Range: $0.99

AQV212 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
3,038 pcs
On Request
3038 pcs On Request 1 On Request On Request 06+ On Request On Request
ACK ELEKTRONIK ✓
Non-Authorised Inventory information
9 pcs
On Request
9 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AQV212 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Circuit
Load Current
Mounting Type
Output Type
Termination Style
View Similar Products (0)

AQV212 Description

Short technical summary and product information.

The AQV212AX from Panasonic Electric Works is a PhotoMOS optically-isolated solid state relay (SSR). It features a single-pole, single-throw, normally open (SPST-NO) output configuration, capable of switching AC or DC loads up to 60V with a maximum continuous current of 550mA. The relay exhibits a maximum on-state resistance of 2.5 Ohms and requires an input drive voltage of 1.14 VDC.



Packaged in a compact 6-SMD (surface-mount device) case with gull wing termination, the AQV212AX is suitable for automated assembly processes. Its solid-state design ensures fast switching speeds, high isolation voltage, and silent operation without contact bounce or arcing, offering a long product life compared to electromechanical relays.



This SSR is widely utilized in applications such as programmable logic controllers (PLCs), factory automation, measurement and test equipment, security systems, and telecommunication devices where reliable and efficient signal switching is critical.

AQV212 Quick Information

Product Type: Solid State Relay
Series: AQV
Canonical Name: AQV212AX Solid State Relay
Subcategory: Solid State Relay

AQV212 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AQV212 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

AQV212 Features

  • SPST-NO solid state relay output.
  • Rated for 60V AC/DC load voltage.
  • Maximum load current of 550mA.
  • Low 2.5 Ohms maximum on-state resistance.
  • Surface mount 6-SMD package.

AQV212 Applications

  • Used in programmable logic controllers.
  • Suitable for factory automation equipment.
  • Applied in measurement and test systems.
  • Incorporated in security systems.
  • Utilized in telecommunication devices.

AQV212 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum load voltage for the AQV212AX?

The maximum load voltage for the AQV212AX is 60V AC or DC.

What is the maximum continuous load current of the AQV212AX?

The maximum continuous load current for the AQV212AX is 550mA.

What is the on-state resistance of the AQV212AX?

The maximum on-state resistance of the AQV212AX is 2.5 Ohms.

What type of package is the AQV212AX in?

The AQV212AX is supplied in a 6-SMD package.

How is the AQV212AX mounted?

The AQV212AX is designed for surface mount installation.
