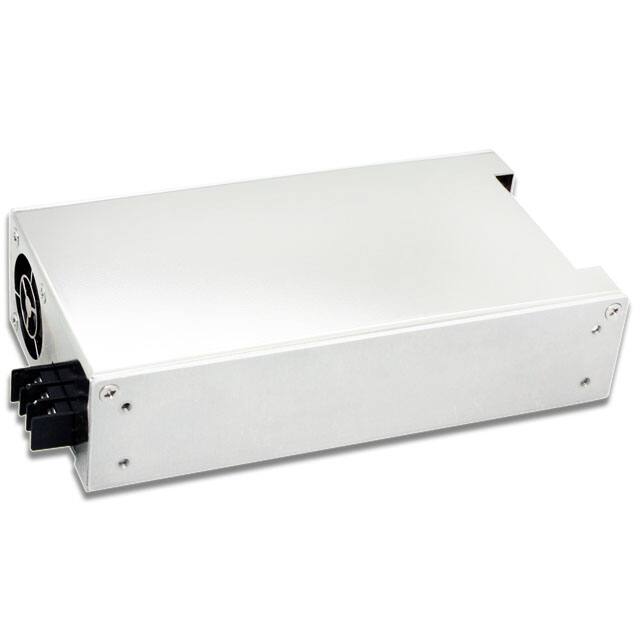

The ARCH AQF700-48S is an enclosed AC/DC converter with a power rating of 700W and an output voltage of 48V. It is designed for chassis mounting and features a universal input.
This converter boasts 92% efficiency and includes features such as adjustable output, Power Factor Correction (PFC), remote on/off control, and a standby output. It operates within a temperature range of -30°C to 70°C with derating.
Key specifications include a current rating of 14.58A, a voltage rating of 4kV, and compliance with standard 62368-1. The dimensions are 170.2mm x 93.0mm x 40.9mm.
It is suitable for ITE (Commercial) applications and carries approvals from CB, CE, and cURus.
The ARCH AQF700-48S has a power output of 700W.
The output voltage is 48V.
It supports chassis mounting.
The operating temperature range is -30°C to 70°C, with derating.
The dimensions are 170.2mm x 93.0mm x 40.9mm.
The efficiency is 92%.
