| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60,559 pcs
|
60559 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Bidirectional Channels | |
| Capacitance @ Frequency | |
| Clamping Voltage (Typ) | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Peak Pulse Current (8/20µs) | |
| Peak Pulse Power | |
| Power | |
| Power Line Protection | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Voltage - Reverse Standoff (Typ) |

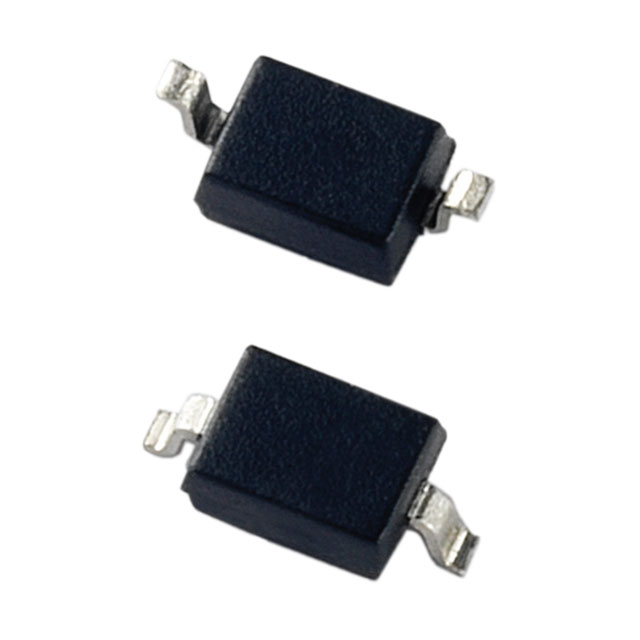

The AQ4020-01FTG-C is a bidirectional TVS diode from Littelfuse designed for overvoltage protection in sensitive electronics. It features a reverse standoff voltage of 3.3V and a typical clamping voltage of 24.5V, with a peak pulse power rating of 735W (8/20µs waveform). The device offers a single bidirectional channel and low capacitance of 2.5pF at 1MHz, making it suitable for high-speed data lines.
This TVS diode is designed for applications including automotive systems, CAN bus interfaces, Ethernet, and USB ports. The operating temperature range spans -40°C to 150°C, ensuring reliable performance in harsh environments.
The component is supplied in a surface-mount SOD-323 package (also known as SC-76), which enables compact PCB layouts. It is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited). The device is not intended for power line protection.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.21 | $1.21 |
| 10+ | $0.72 | $0.72 |
| 100+ | $0.50 | $0.50 |
| 500+ | $0.38 | $0.38 |
| 1,000+ | $0.35 | $0.35 |
| 3,000+ | $0.27 | $0.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The reverse standoff voltage is 3.3V (inferred from part number).
The typical clamping voltage is 24.5V.
The peak pulse current is 30A under 8/20µs waveform.
It is available in surface mount SOD-323 (SC-76) package.
The peak pulse power is 735W.
The typical capacitance is 2.5pF at 1MHz.
The operating temperature range is -40°C to 150°C.
