| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

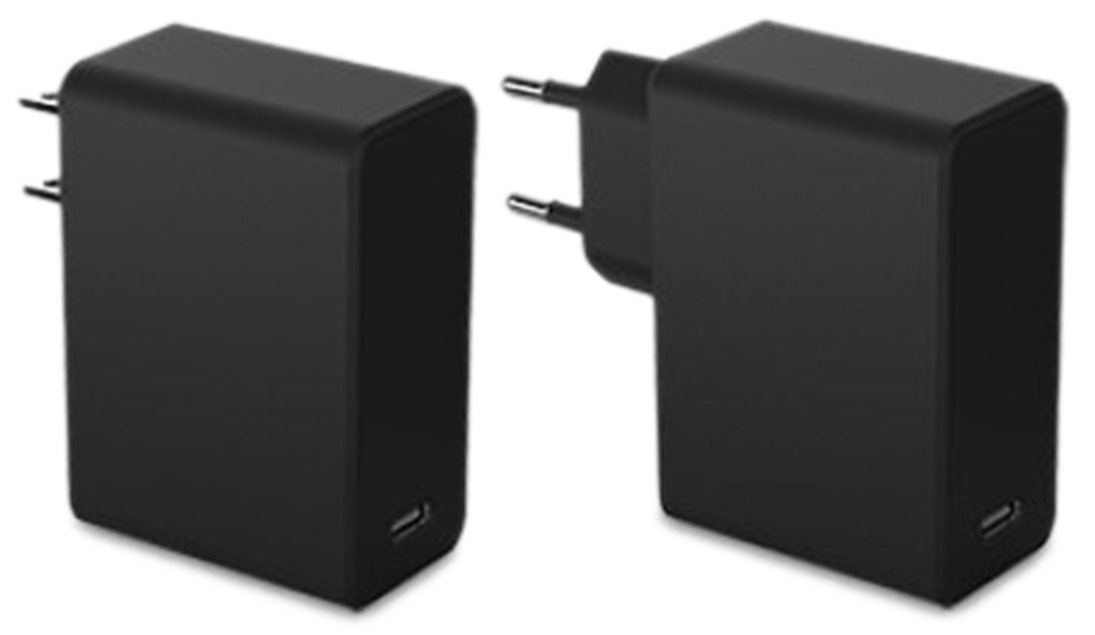

The Phihong USA AQ36A-59FA-H is a versatile 36W AC/DC wall mount adapter suitable for ITE (Commercial) applications. It provides selectable output voltages of 5V, 9V, or 15V, with corresponding output currents of 3A, 3A, and 2.4A respectively. The adapter utilizes a standard NEMA 1-15P input connector and a USB-C receptacle for output.
Designed for efficiency, this adapter meets Level VI and CoC V5 Tier 4 standards, with a maximum no-load power consumption of 75mW. It operates within a temperature range of 0°C to 45°C and has compact dimensions of 67.0mm x 29.0mm x 48.0mm. The unit is approved by cULus and complies with safety standards 60950-1 and 62368-1.
This adapter is a Class II, wall-mountable unit, ideal for powering various electronic devices requiring stable and efficient power conversion. Its design prioritizes safety and performance for commercial use.
The adapter provides three outputs: 5V at 3A, 9V at 3A, and 15V at 2.4A.
The input voltage range is 100-240 VAC.
It meets Level VI and CoC V5 Tier 4 efficiency standards.
The operating temperature range is 0°C to 45°C.
The output connector is a USB-C receptacle.
It is approved to cULus and complies with standards 60950-1 and 62368-1.
