Mfr Part #:

AQ18E-59CFA-H

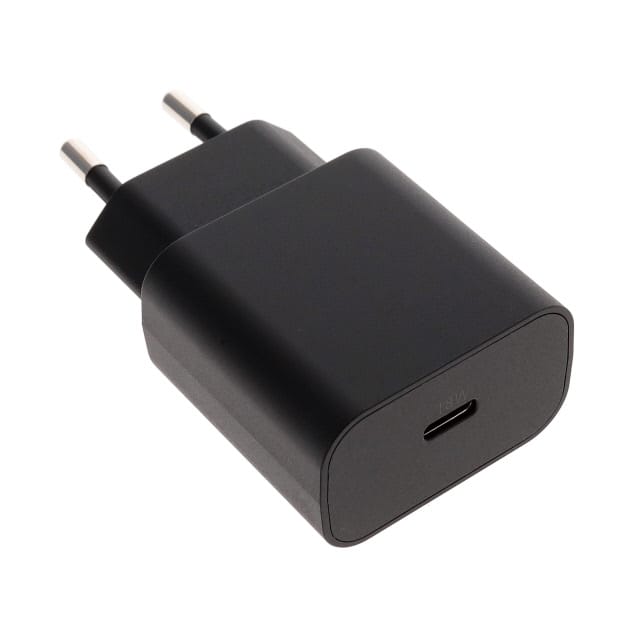

The Phihong USA AQ18E-59CFA-H is an 18W AC/DC wall adapter featuring a USB-C output with Power Delivery 3.0. It supports multiple output voltages including 5V, 9V, 12V, and 15V.

Stock on Request

AQ18E-59CFA-H Description

Short technical summary and product information.

This 18W AC/DC wall adapter from Phihong USA, model AQ18E-59CFA-H, is designed for efficient power delivery. It features a fixed blade input connector and a USB Type-C output port, supporting USB Power Delivery 3.0.

The adapter provides selectable DC output voltages of 5V, 9V, 12V, and 15V, with corresponding maximum currents of 3.0A, 2.0A, 1.5A, and 1.2A respectively, delivering up to 18W of power. It operates within a wide AC input voltage range of 90 to 264VAC and meets Ecodesign/ErP Lot 7 (EU) 2019/1782 and CoC Version 5 Tier 2 compliance standards.

Key electrical specifications include an average efficiency of over 81.4% at 115VAC and 81.8% at 230VAC, with a low no-load power consumption of 75mW maximum at 230VAC. Protections include Over-Voltage, Over-Current, Short Circuit, and Over Temperature (latch off).

The unit is designed as a Class II, Wall Mount adapter with dimensions of 76.71mm x 41.0mm x 24.3mm. It is suitable for applications such as mobile phones, networking devices, and tablets, offering reliable and certified power solutions.

AQ18E-59CFA-H Quick Information

Product Type: AC/DC Wall Adapter

Canonical Name: 18W Fixed Blade USB-C Charger with Power Delivery 3.0

Subcategory: Power Adapter

AQ18E-59CFA-H Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

AQ18E-59CFA-H Features

18W output power capability.
USB Type-C connector with PD 3.0.
Multiple output voltages: 5V, 9V, 12V, 15V.
Fixed blade input for European regions.
Low no-load power consumption.

AQ18E-59CFA-H Applications

Ideal for mobile phones.
Suitable for networking devices.
Powers various tablet models.
Compliant with EU energy standards.

AQ18E-59CFA-H FAQs

7 frequently asked questions generated from this part’s specifications.

What output voltages does the AQ18E-59CFA-H provide?

The adapter provides 5V, 9V, 12V, and 15V via USB Power Delivery 3.0 negotiation.

What is the operating temperature range of this adapter?

The operating temperature range is 0°C to +40°C.

What efficiency standards does the AQ18E-59CFA-H meet?

It meets Level VI and CoC Version 5 Tier 2 efficiency standards, with average efficiency above 81% at both 115VAC and 230VAC.

What protections are included in this adapter?

It includes over-voltage protection (auto recover), over-current protection (auto recover), short circuit protection (auto recover), and over-temperature protection (latch off).

What is the input voltage range for the AQ18E-59CFA-H?

The AC input voltage range is 90-264VAC at 47-63Hz.

Is the AQ18E-59CFA-H USB Power Delivery certified?

Yes, it complies with USB Power Delivery 3.0.

What safety certifications does this adapter hold?

It is certified to IEC 62368-1 and classified as a Limited Power Source (LPS).

Category	AC DC Desktop, Wall Adapters
Manufacturer Name	Phihong USA
Applications	ITE (Commercial)
Approval Agency	IEC
Current	3A, 2A, 1.5A, 1.2A
Dimensions	76.71mm (3.02in) x 41.0mm (1.61in) x 24.3mm (0.96in)
Efficiency	Level VI, CoC Tier 2
Form	Wall Mount (Class II)
Height	58.0mm (2.28")
Input Connector	Fixed Blade
Input Type	Fixed Blade
Insulation Resistance	>100MΩ
Length	41.0mm (1.61")
Mounting Type	Wall Mount
No Load Power Consumption	75mW (Max)
Operating Temperature	0°C to +40°C
Output Connector	USB-C
Power (Watts)	18W
Region Utilized	Europe
Voltage	5V, 9V, 12V, 15V
Weight	55g
Width	24.3mm (0.96")
