| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,000 pcs
|
9000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Capacitance @ Frequency | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Power Line Protection | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Unidirectional Channels | |
| Voltage |

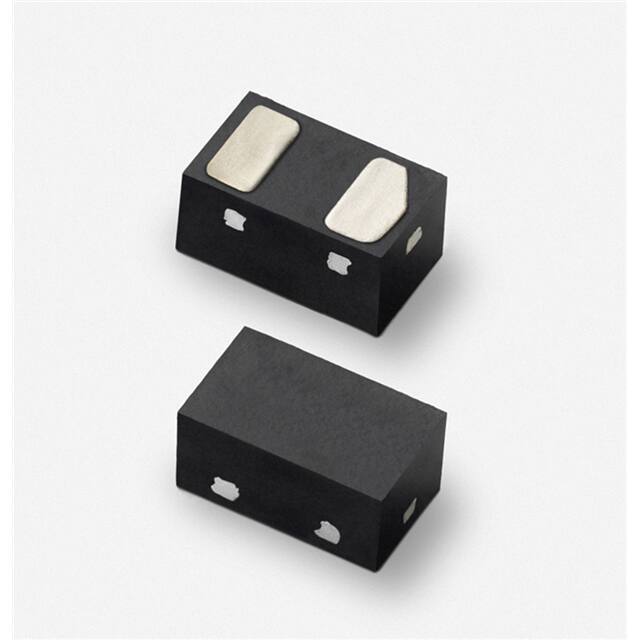

The AQ1250-01ETG is a unidirectional TVS diode from Littelfuse, designed for ESD protection in automotive applications. It features a Zener clamping diode type with a reverse standoff voltage of 10V and a peak pulse current rating of 50A under 8/20µs waveform. The device has a typical capacitance of 118pF at 1MHz, suitable for high-speed data lines.
This TVS diode is housed in a compact SOD-882 surface-mount package, operating over a temperature range of -40°C to 125°C. It is not intended for power line protection, being optimized for signal line ESD protection. The component is rated for automotive applications, meeting stringent reliability requirements.
Compliance information includes RoHS3 compliance, REACH unaffected status, and MSL level 1 (unlimited). Note that these compliance statuses are unverified and should be confirmed from official documentation. The part is available in tape and reel packaging for automated assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.66 | $0.66 |
| 10+ | $0.41 | $0.41 |
| 100+ | $0.26 | $0.26 |
| 500+ | $0.20 | $0.20 |
| 1,000+ | $0.17 | $0.17 |
| 2,500+ | $0.15 | $0.15 |
| 5,000+ | $0.14 | $0.14 |
| 10,000+ | $0.12 | $0.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The reverse standoff voltage is 10V.
The peak pulse current is 50A under 8/20µs waveform.
It is available in a surface-mount SOD-882 package.
It has 1 unidirectional channel.
The typical capacitance is 118pF at 1MHz.
The operating temperature range is -40°C to 125°C.
Yes, it is rated for automotive applications.
