| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Insulation Resistance | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Ripple | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Weight | |
| Width |

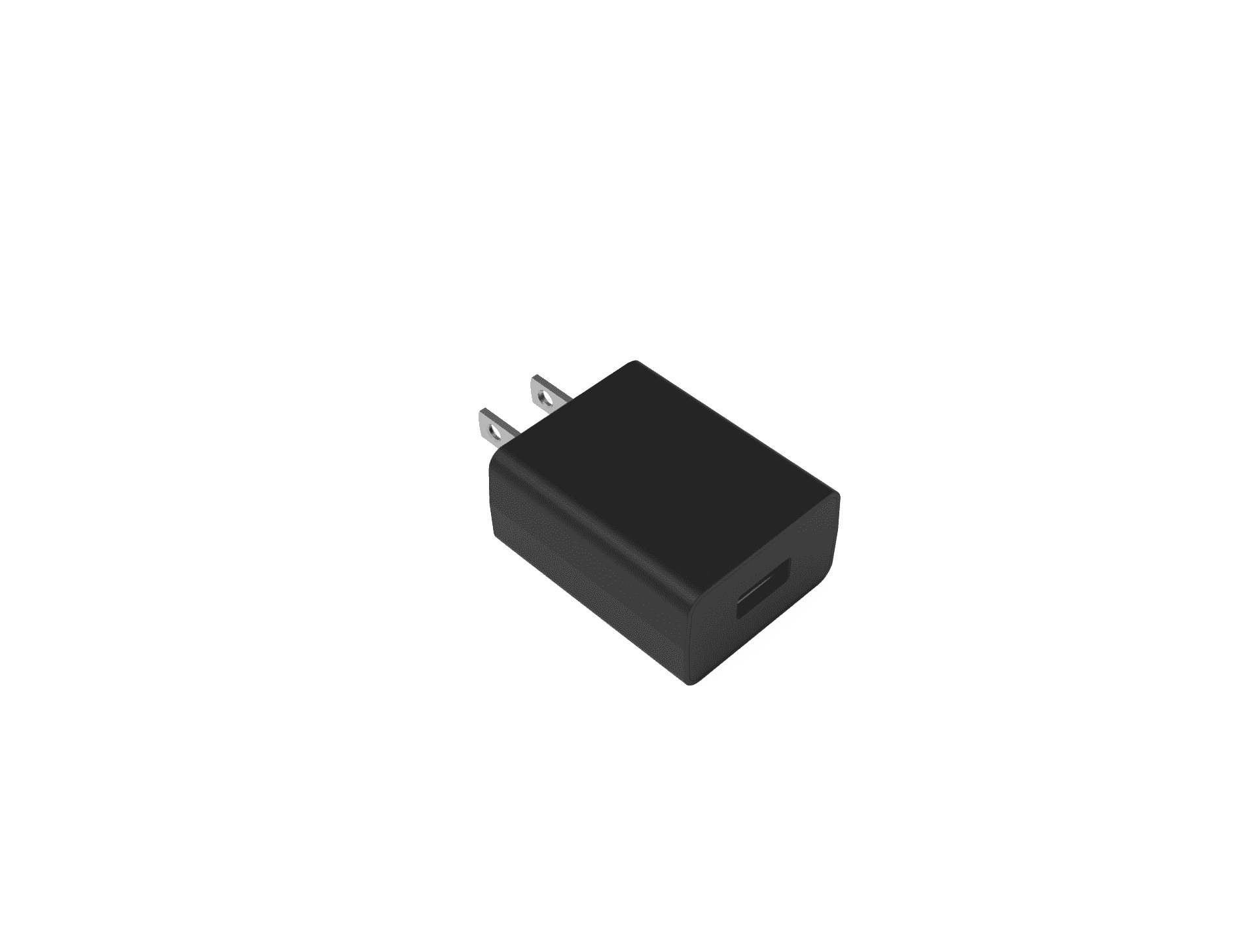

The Phihong USA AQ10A-050BP-H is a compact, fixed blade AC/DC wall mount adapter designed for various applications. It delivers a stable 5V output at a maximum load of 2.0A, providing a total power of 10W. This adapter is compliant with Level VI efficiency standards and includes essential protections such as Over-Voltage Protection (OVP), Over-Current Protection (OCP), and Short Circuit Protection (SCP).
The unit operates within a wide AC input voltage range of 90 to 264VAC and features a standard NEMA 1-15P input connector suitable for North American outlets. The output is delivered via a USB Type A receptacle, making it versatile for charging tablets, personal electronics, and other portable devices. Its compact dimensions (47.0mm x 38.0mm x 22.3mm) and lightweight design (40g) make it ideal for portable applications.
Safety and compliance are key features, with approvals including cULus 62368-1, CB (IEC62368-1), and CE. The adapter also meets FCC Class B and EN55032 Class B emissions standards. It operates reliably within a temperature range of 0°C to 40°C.
The output is 5V DC at 2.0A (10W).
It accepts a universal AC input of 90 to 264 VAC.
It is approved to cULus 62368-1, CB (IEC62368-1), and CE.
The operating temperature range is 0°C to +40°C.
It uses a USB A receptacle output connector.
Yes, it meets Level VI efficiency standards.
