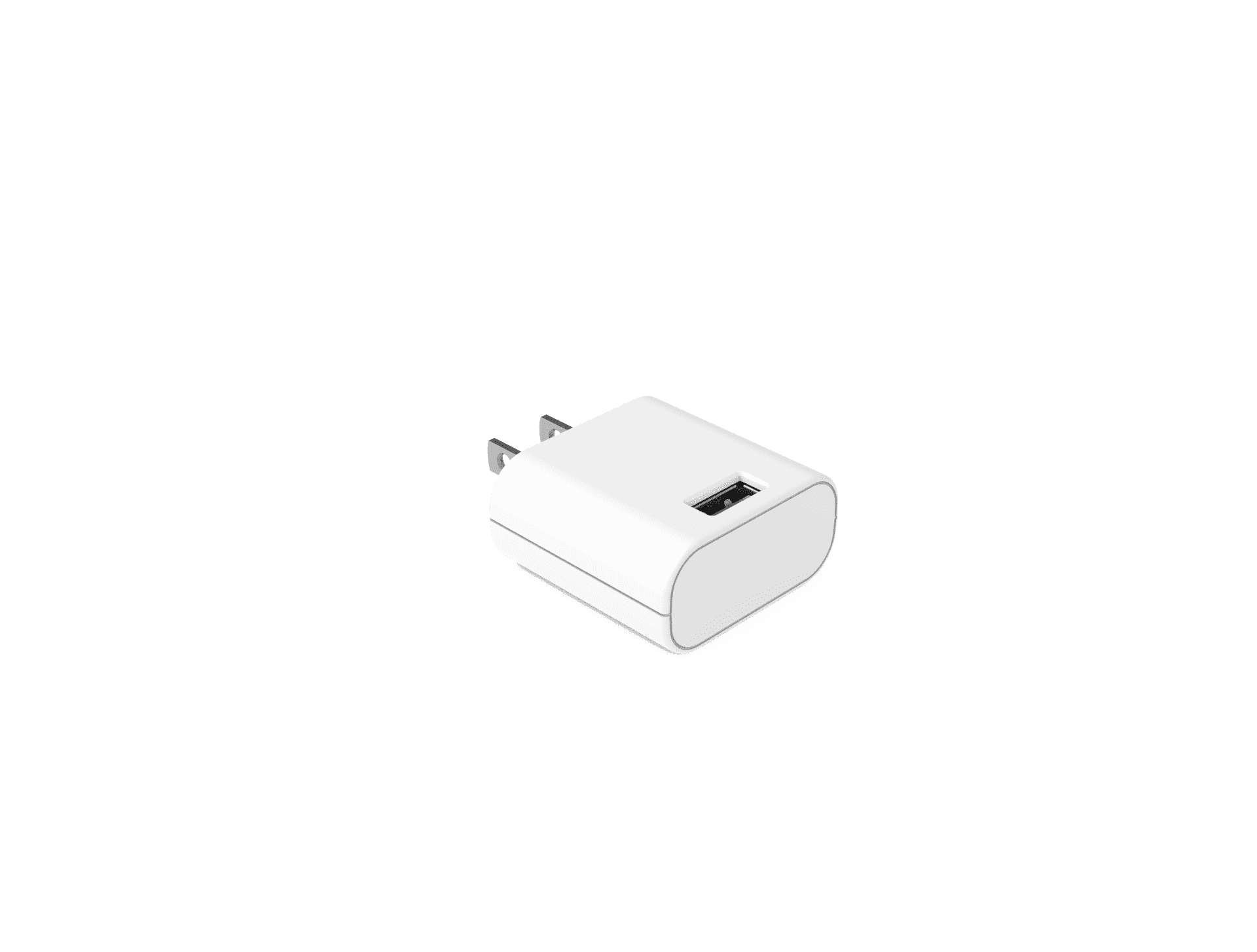

This AC/DC wall mount adapter from Phihong USA, model AQ03A-050AW-R, delivers a stable 5.0V DC output with a maximum current of 0.55A, resulting in a total output power of 2.75W. Designed for efficiency, it meets US DoE Level VI compliance and CoC Tier 2 standards.
The adapter operates within a wide AC input voltage range of 90 to 264VAC and a frequency of 47 to 63Hz. It features a fixed blade input connector suitable for North American outlets and a USB-A receptacle for the output. The device is protected against over-voltage up to 7.5V and short circuits.
With dimensions of 43.0mm x 21.0mm x 42.0mm and a weight of 28g, this compact adapter is suitable for various applications. It operates reliably in temperatures ranging from 0°C to +40°C and has an operating altitude of up to 3,048 meters. The adapter is designed for ITE (Commercial) applications.
The adapter provides a 5.0V DC output voltage with a maximum current of 0.55A.
The total output power is 2.75W.
Yes, it meets US DoE Level VI compliance and CoC Tier 2 standards.
It features a USB-A receptacle for the output.
The adapter operates in temperatures from 0°C to +40°C.
