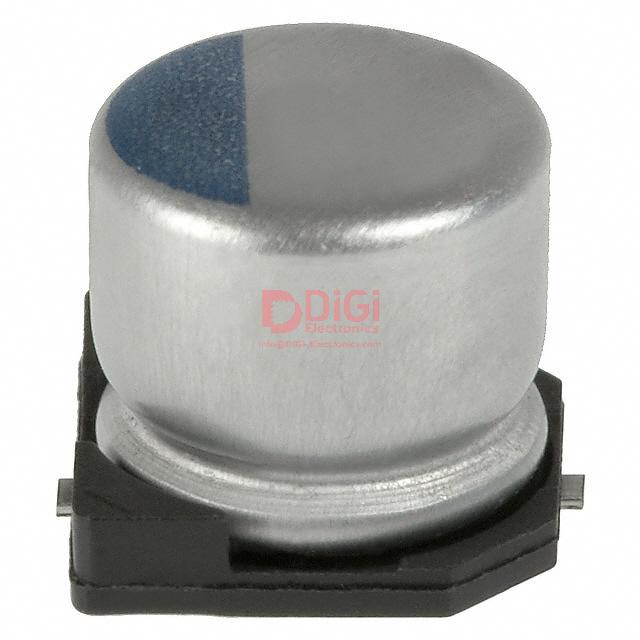

APXH100ARA560MF60G The United Chemi-Con APXH100ARA560MF60G is a polymer capacitor with a capacitance of 56µF and a rated voltage of 10V. It features an ESR of 45mOhm and is designed for general purpose applications.
Mfr Part #:

APXH100ARA560MF60G

Available from 1 distributors
Mfr Name: United Chemi-Con
United Chemi-Con
The United Chemi-Con APXH100ARA560MF60G is a polymer capacitor with a capacitance of 56µF and a rated voltage of 10V. It features an ESR of 45mOhm and is designed for general purpose applications.
✓ Total Stock: 9,980 pcs
$ Price Range: $0.02

APXH100ARA560MF60G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
9,980 pcs
On Request
9980 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

APXH100ARA560MF60G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Capacitance
ESR (Equivalent Series Resistance)
Failure Rate
Operating Temperature
Tape & Reel
Tolerance
Type
View Similar Products (0)

APXH100ARA560MF60G Description

Short technical summary and product information.

This United Chemi-Con APXH100ARA560MF60G is a polymer capacitor from the NPCAP™-PXH series. It offers a capacitance of 56µF with a tolerance of ±20% and is rated for a maximum voltage of 10V.



The capacitor has an Equivalent Series Resistance (ESR) of 45mOhm and a ripple current rating of 2.25A at 100kHz. It is designed to operate within a temperature range of -55°C to 125°C, with a specified lifetime of 1000 hours at 125°C.



Packaged in Tape & Reel, this component is suitable for surface mount (SMD) applications. Its dimensions are 6.30mm in diameter. The capacitor is intended for general purpose applications, providing reliable performance in various electronic circuits.

APXH100ARA560MF60G Quick Information

Product Type: Polymer Capacitor
Series: NPCAP™-PXH
Canonical Name: United Chemi-Con APXH100ARA560MF60G Polymer Capacitor
Subcategory: Polymer Capacitor

APXH100ARA560MF60G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

APXH100ARA560MF60G Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

APXH100ARA560MF60G Features

  • 56µF capacitance with ±20% tolerance.
  • Rated for 10V DC operation.
  • Low ESR of 45mOhm.
  • 1000 hours lifetime at 125°C.
  • Surface mount (SMD) package.

APXH100ARA560MF60G Applications

  • Suitable for general purpose applications.
  • Ideal for circuits requiring stable capacitance.
  • Used in power supply filtering stages.
  • Appropriate for temperature-sensitive designs.

APXH100ARA560MF60G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance of the APXH100ARA560MF60G?

56 µF.

What is the rated voltage of the APXH100ARA560MF60G?

10 V.

What is the capacitance tolerance?

±20%.

What package type is the APXH100ARA560MF60G available in?

Radial, Can - SMD.

What is the equivalent series resistance (ESR)?

45 mΩ.

What is the ripple current rating?

2.25 A at 100 kHz.

What is the lifetime rating at 125°C?

1,000 hours.
