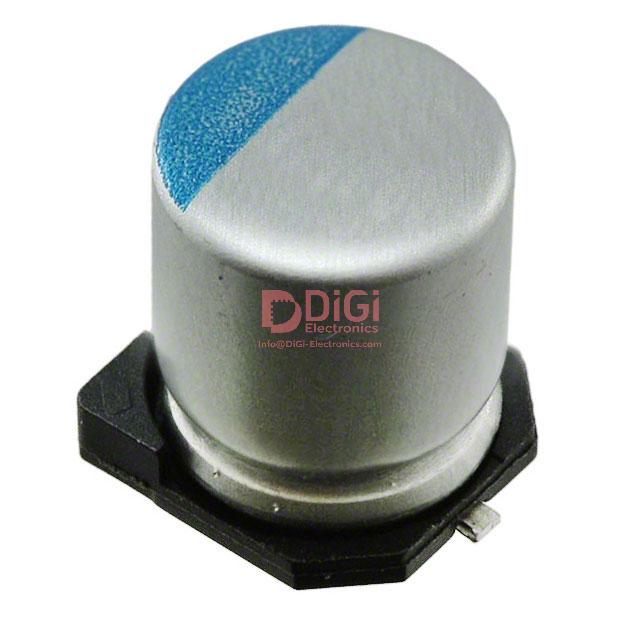

APXE160ARA101MF80G The United Chemi-Con APXE160ARA101MF80G is an aluminum polymer capacitor with a capacitance of 100 µF and a rated voltage of 16 V. It features an ESR of 24 mOhm and operates within a temperature range of -55°C to 105°C.
Mfr Part #:

APXE160ARA101MF80G

Available from 1 distributors
Mfr Name: United Chemi-Con
United Chemi-Con
The United Chemi-Con APXE160ARA101MF80G is an aluminum polymer capacitor with a capacitance of 100 µF and a rated voltage of 16 V. It features an ESR of 24 mOhm and operates within a temperature range of -55°C to 105°C.
✓ Total Stock: 12 pcs
$ Price Range: $1.20

APXE160ARA101MF80G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
12 pcs
On Request
12 pcs On Request 1 On Request On Request 1639 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

APXE160ARA101MF80G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance
ESR (Equivalent Series Resistance)
Operating Temperature
Tolerance
View Similar Products (0)

APXE160ARA101MF80G Description

Short technical summary and product information.

This United Chemi-Con APXE160ARA101MF80G is an aluminum polymer capacitor from the NPCAP™-PXE series. It offers a capacitance of 100 µF with a tolerance of ±20% and is rated for a voltage of 16 V.



The capacitor has a low Equivalent Series Resistance (ESR) of 24 mOhm and a rated ripple current of 2.7 A at 100 kHz. Its operational temperature range is -55°C to 105°C, with a specified lifetime of 2000 hours at 105°C.



Designed for general purpose applications, this component comes in a Radial, Can - SMD package. The dimensions are 6.30mm in diameter and 7.70mm in height. It is supplied in Cut Tape (CT) & Digi-Reel® packaging.



Key electrical characteristics include its 100 µF capacitance and 16 V rating, making it suitable for various electronic circuits requiring stable performance.

APXE160ARA101MF80G Quick Information

Product Type: Aluminum Polymer Capacitor
Series: NPCAP™-PXE
Canonical Name: United Chemi-Con APXE160ARA101MF80G Aluminum Polymer Capacitor
Subcategory: Aluminum Polymer Capacitor

APXE160ARA101MF80G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

APXE160ARA101MF80G Estimated Pricing

Qty Low High
1+ $1.20 $1.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

APXE160ARA101MF80G Features

  • 100 µF capacitance with ±20% tolerance.
  • Rated for 16 V DC operation.
  • Low ESR of 24 mOhm.
  • Wide operating temperature range of -55°C to 105°C.
  • Radial, Can - SMD package for surface mounting.

APXE160ARA101MF80G Applications

  • Suitable for general purpose applications.
  • Used in power supply filtering circuits.
  • Applicable in consumer electronics.
  • Ideal for compact electronic designs.

APXE160ARA101MF80G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the rated voltage of this capacitor?

The rated voltage is 16 V.

What is the package type of the APXE160ARA101MF80G?

It is a Radial, Can - SMD package.

What is the operating temperature range?

-55°C to 105°C.

What is the capacitance value?

100 µF with ±20% tolerance.

What is the equivalent series resistance?

24 mOhm typical.

What is the ripple current rating?

2.7 A at 100 kHz.

What is the expected lifetime?

2000 hours at 105°C.
