| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,138 pcs
|
1138 pcs | On Request | 1 | On Request | On Request | 1935+ | On Request | On Request | |
|
273 pcs
|
273 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Diameter | |
| Dissipation Factor | |
| Halogen Free | |
| Length | |
| Mounting Type | |
| Operating Temperature |

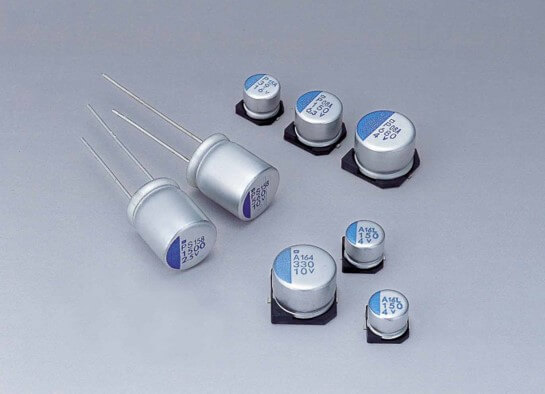

The United Chemi-Con APXA160ARA181MHC0G is a surface mount conductive polymer capacitor from the PXA series. It is engineered for super low ESR, impedance, and high heat resistance, utilizing conductive polymer as the electrolyte. This capacitor operates within a temperature range of -55 to +105°C and has a rated voltage range of 2.5 to 25Vdc, with this specific part rated at 16Vdc.
Key electrical specifications include a capacitance of 180µF with a tolerance of ±20% at 120Hz. It features a maximum dissipation factor (tan δ) of 0.12 at 120Hz and a rated ripple current of 4360 mArms at 105°C and 100kHz. Low temperature characteristics are maintained with impedance ratios Z(-25°C)/Z(+20°C) ≤ 1.15 and Z(-55°C)/Z(+20°C) ≤ 1.25 at 100kHz.
Designed for applications such as DC-DC converters, voltage regulators, and decoupling on computer motherboards, the APXA160ARA181MHC0G is solvent resistant and Halogen Free. It has undergone endurance testing for 15,000 hours at 105°C and bias humidity testing for 1,000 hours at 60°C. The physical dimensions are a diameter of 8mm and a length of 12mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.10 | $0.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance of the APXA160ARA181MHC0G capacitor is 180µF.
The rated DC voltage for the APXA160ARA181MHC0G capacitor is 16V.
The operating temperature range is -55 to +105°C.
The capacitance tolerance is ±20% at 20°C and 120Hz.
The maximum dissipation factor is 0.12 at 20°C and 120Hz.
At 100kHz, the impedance ratio Z(-25°C)/Z(+20°C) is ≤ 1.15, and Z(-55°C)/Z(+20°C) is ≤ 1.25.
The rated ripple current is 4360 mArms at 105°C and 100kHz.
