| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | 1245+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Lead Style | |
| Mounting Type | |
| Number of Elements | |
| Operating Temperature | |
| Output Type | |
| Propagation Delay (Max) | |
| SVHC Present | |
| Storage Temperature | |
| Supplier Device Package | |
| Supply Voltage | |
| Termination Style | |
| Type | |
| Voltage |

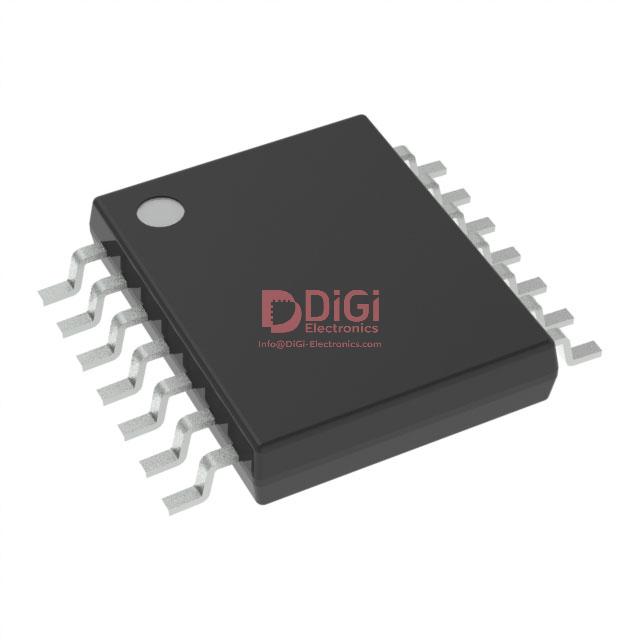

The APX393SG-13 is a dual low-voltage comparator from Diodes Incorporated, designed for general purpose applications. It features rail-to-rail input common mode voltage range (V-+0.2V to V+-0.2V) and open-drain outputs for easy interfacing with various logic families. The device operates from a single supply of 2.5V to 5.5V, making it suitable for battery-powered portable devices.
Key electrical characteristics include a typical supply current of 60µA per channel (120µA total typical, 180µA maximum), a maximum input offset voltage of 7mV at 5V, and a propagation delay of 600ns maximum. The comparator is rated for the industrial temperature range of -40°C to 85°C and offers ESD protection of 4kV HBM and 400V MM.
The APX393SG-13 is packaged in an 8-SOP (SOIC-8, 0.154" width) surface mount package with gull wing terminals. It is RoHS3 compliant and uses a lead-free finish. The standard tape and reel packaging contains 2500 units per reel. This comparator is ideal for space-constrained and power-sensitive designs in consumer electronics.
The APX393SG-13 operates from 2.5V to 5.5V.
It is available in an 8-SOP (8-SOIC, 0.154" width) surface mount package.
The operating temperature range is -40°C to 85°C.
Yes, it is RoHS3 compliant with a lead-free finish.
The typical supply current is 60µA per channel.
The maximum propagation delay is 600ns.
The output type is open-drain.
