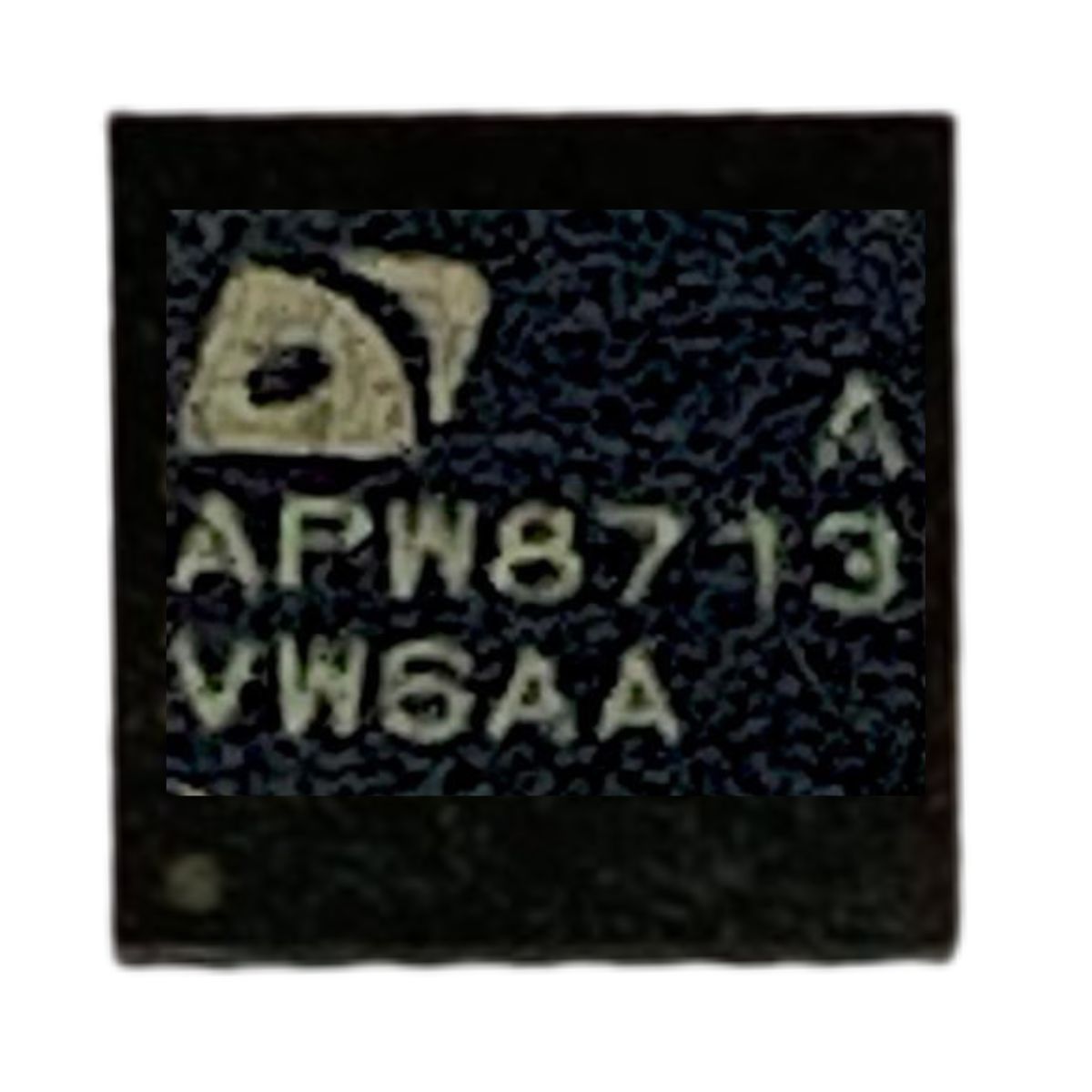

APW8713AQBI-TRG The APW8713AQBI-TRG is a synchronous step-down converter from Anpec Electronics Corporation. It features an adjustable output voltage range of 0.8V to 12V and operates from an input voltage of 2.7V to 28V.
Mfr Part #:

APW8713AQBI-TRG

Available from 1 distributors
Mfr Name: Anpec Electronics Corporation
Anpec Electronics Corporation
The APW8713AQBI-TRG is a synchronous step-down converter from Anpec Electronics Corporation. It features an adjustable output voltage range of 0.8V to 12V and operates from an input voltage of 2.7V to 28V.
✓ Total Stock: 5,450 pcs
$ Price Range: $1.08

APW8713AQBI-TRG Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
5,450 pcs
On Request
5450 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

APW8713AQBI-TRG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Input Voltage
Mounting Type
Operating Mode
Output Voltage
View Similar Products (0)

APW8713AQBI-TRG Description

Short technical summary and product information.

The APW8713AQBI-TRG is a synchronous step-down converter manufactured by Anpec Electronics Corporation. This integrated circuit is designed to reduce high input voltages to lower output voltages, making it suitable for applications such as notebook computers and RAM power supplies.



Key electrical specifications include an adjustable output voltage ranging from 0.8V to 12V with a reference voltage of 0.8V and ±1% accuracy over temperature. It operates from an input voltage range of 2.7V to 28V. The device offers a programmable switching frequency from 100kHz to 1000kHz and includes integrated N-Channel MOSFETs for both high-side (30mΩ) and low-side (9mΩ) operation.



Protection features include precise current limit protection using the low-side MOSFET's RDS(ON), output overvoltage protection at 125%, and output undervoltage protection at 70%. It also incorporates power-on-reset monitoring, adjustable external soft-start, and integrated output discharge for soft-stop.



The APW8713AQBI-TRG is available in a TQFN4x4-23 package and is suitable for surface mount applications. It is designed for use in notebooks, motherboards, desktop PCs, portable devices, AIO PCs, set-top boxes, and LCD TVs.

APW8713AQBI-TRG Quick Information

Product Type: DC-DC Switching Regulator
Canonical Name: APW8713AQBI-TRG Synchronous Step-Down Converter
Subcategory: Voltage Regulators

APW8713AQBI-TRG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

APW8713AQBI-TRG Estimated Pricing

Qty Low High
1+ $1.08 $1.08

Estimated market price range - modelled values for guidance only, not live distributor offers.

APW8713AQBI-TRG Features

  • Adjustable output voltage from 0.8V to 12V.
  • Wide input voltage range of 2.7V to 28V.
  • Programmable switching frequency up to 1000kHz.
  • Integrated low Rds(on) MOSFETs.
  • Multiple protection features included.

APW8713AQBI-TRG Applications

  • Suitable for notebook power supplies.
  • Used in desktop PC motherboards.
  • Applicable for portable electronic devices.
  • Designed for AIO PC systems.
  • Can be used in LCD TV applications.

APW8713AQBI-TRG FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage range of the APW8713AQBI-TRG?

The output voltage is adjustable from 0.8V to 12V.

What is the input voltage range?

The input voltage range is 2.7V to 28V for battery operation.

What package is the APW8713AQBI-TRG available in?

It is available in a TQFN-23 4mmx4mm package.

What is the switching frequency range?

The switching frequency is programmable from 100kHz to 1000kHz.

What protection features does the APW8713AQBI-TRG include?

It includes current limit protection using the low-side MOSFET Rds(on), output overvoltage protection at 125%, and output undervoltage protection at 70%.

What operating modes are available?

The operating mode is selectable between forced PWM and automatic PFM/PWM.

What is the output voltage tolerance?

The output voltage tolerance is ±1% over temperature.
