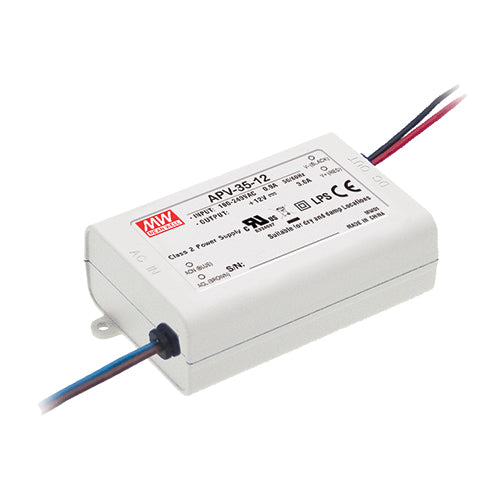

APV-35-12 Mean Well USA APV-35-12 is a constant voltage LED driver with 12V output at 3A (36W). It accepts 90-264VAC input and features OCP, OVP, SCP protections.
Mfr Part #:

APV-35-12

Available from 1 distributors
Mfr Name: Mean Well USA
Mean Well USA
Mean Well USA APV-35-12 is a constant voltage LED driver with 12V output at 3A (36W). It accepts 90-264VAC input and features OCP, OVP, SCP protections.
✓ Total Stock: 144 pcs
$ Price Range: $10.20 - $11.60

APV-35-12 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
144 pcs
On Request
144 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

APV-35-12 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Approval Agency
Current
Efficiency
Features
Height
Lead Style
Length
Number of Outputs
Operating Temperature
Output Voltage
Power (Watts)
Ratings
Tape & Reel
Termination Style
Topology
Type
Voltage
Width
View Similar Products (0)

APV-35-12 Description

Short technical summary and product information.

The Mean Well USA APV-35-12 is a 36W constant voltage LED driver designed for indoor LED lighting applications. It delivers a regulated 12V output at up to 3A with an efficiency of 83%.



This AC-DC converter accepts a wide input voltage range of 87VAC to 264VAC at 47-63Hz. It includes comprehensive protection features: over current protection (OCP), over voltage protection (OVP), and short circuit protection (SCP). The unit is rated IP42 for indoor use and operates over a temperature range of -30°C to 70°C.



The driver features wire lead terminations and measures 84.0mm x 57.0mm x 29.5mm. It carries CE and cURus safety approvals.

APV-35-12 Quick Information

Product Type: LED Driver
Series: APV-35
Canonical Name: Mean Well USA APV-35-12 LED Driver, Constant Voltage, 12V Output, 3A, 36W
Subcategory: Constant Voltage

APV-35-12 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

APV-35-12 Estimated Pricing

Qty Low High
1+ $11.60 $11.60
5+ $11.00 $11.00
10+ $10.60 $10.60
20+ $10.20 $10.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

APV-35-12 Features

  • Constant voltage 12V output at 3A.
  • Wide AC input range 87-264VAC.
  • Built-in OCP, OVP, and SCP protections.
  • IP42 rated for indoor use.
  • Wire lead termination style.

APV-35-12 Applications

  • Indoor LED strip lighting installations.
  • Signage and display backlighting.
  • Architectural accent lighting systems.
  • General constant voltage LED applications.

APV-35-12 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the output voltage and current of the APV-35-12?

The output voltage is 12V DC and the output current is 3A, providing 36W of power.

What is the input voltage range for this LED driver?

The input voltage range is 87VAC to 264VAC at 47-63Hz.

What protections does the APV-35-12 include?

It includes over current protection (OCP), over voltage protection (OVP), and short circuit protection (SCP).

What is the operating temperature range?

The operating temperature range is -30°C to 70°C.

What is the efficiency of the APV-35-12?

The efficiency is 83%.

What is the IP rating of this driver?

The IP rating is IP42.
