Mfr Part #:

APTM100H45SCTG

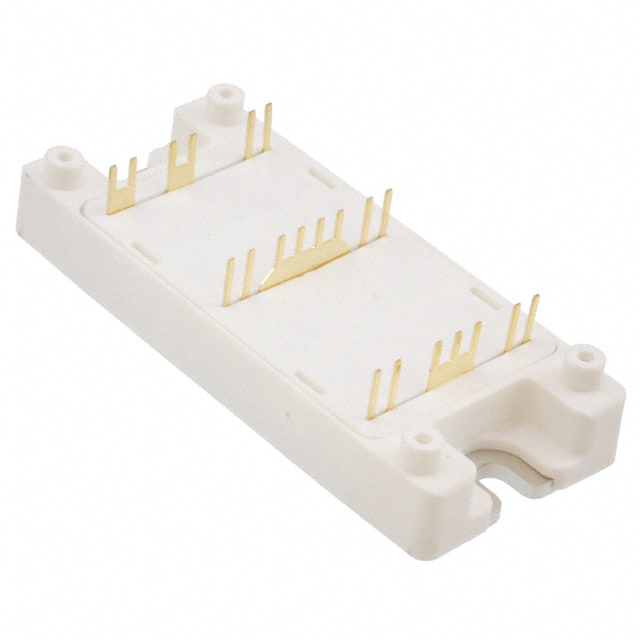

Name: APTM100H45SCTG
Brand: Microchip Technology
SKU: APTM100H45SCTG

Description:

MOSFET 4N-CH 1000V 18A SP4

Stock on Request

APTM100H45SCTG Description

Short technical summary and product information.

MOSFET 4N-CH 1000V 18A SP4

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

APTM100H45STG

Microchip Technology

MOSFET 4N-CH 1000V 18A SP4

Category	Transistors - FETs, MOSFETs - Arrays
Manufacturer Name	Microchip Technology
Configuration	4 N-Channel (Half Bridge)
Current	18A
Drain to Source Voltage (Vdss)	1000V (1kV)
Gate Charge (Qg) (Max) @ Vgs	154nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	4350pF @ 25V
Mounting Type	Chassis Mount
Operating Temperature	-40°C ~ 150°C (TJ)
Power	357W
Rds On (Max) @ Id, Vgs	540mOhm @ 9A, 10V
Supplier Device Package	SP4
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	5V @ 2.5mA
