| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
750 pcs
|
750 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Configuration | |
| Current | |
| IGBT Type | |
| Input | |
| Input Capacitance (Cies) @ Vce | |
| Mounting Type | |
| NTC Thermistor | |
| Operating Temperature | |
| Power | |
| Supplier Device Package | |
| Vce(on) (Max) @ Vge, Ic | |
| Voltage |

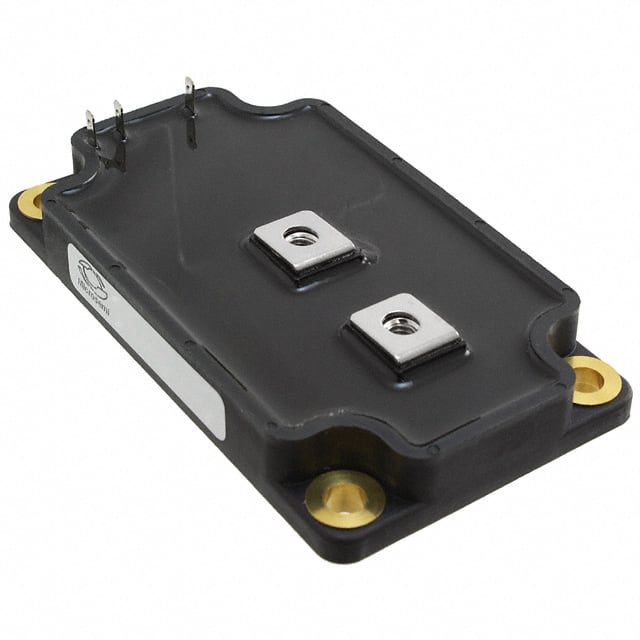

The APTGL475U120DAG is a high-power IGBT module from Microchip Technology, featuring trench field stop technology for improved efficiency. It is rated for a collector-emitter voltage of 1200V, collector current of 610A, and power dissipation of 2307W. The module has a single configuration with standard gate drive input. The collector-emitter saturation voltage is typically 2.2V at 15V gate voltage and 400A collector current. Input capacitance is 24.6 nF at 25V. The module is housed in an SP6 package and designed for chassis mount installation. It operates over a junction temperature range of -40°C to 175°C. This module is suitable for applications such as motor drives, inverters, and power supplies requiring high voltage and current handling. The part is RoHS3 compliant and REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 5+ | $228.04 | $228.04 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1200V (collector-emitter voltage).
SP6.
-40°C to 175°C (junction temperature).
Yes, RoHS3 compliant (unverified).
610A.
2307W.
Chassis mount.
