| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Color | |
| Configuration | |
| Current | |
| Halogen Free | |
| Height (Max) | |
| Junction Temperature | |
| Lead Style | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Operating Temperature | |
| Peak Forward Current | |
| Power Dissipation | |
| Reverse Current | |
| Reverse Voltage | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

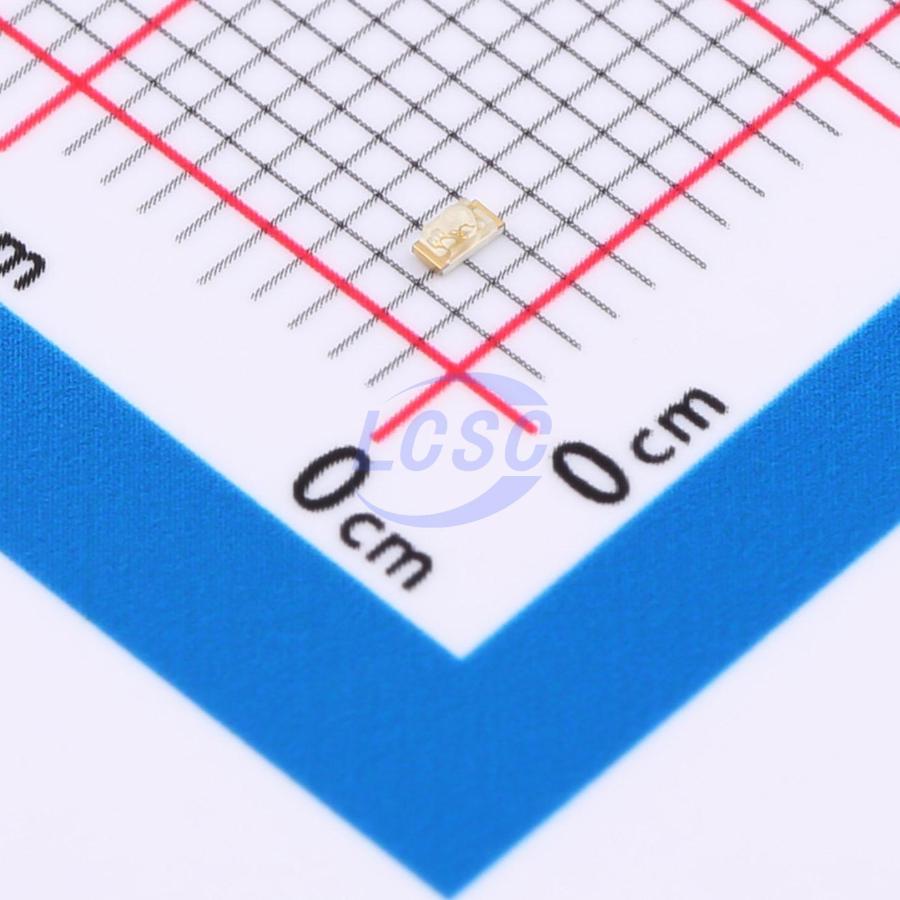

The Kingbright APTD1608ZGCK is a surface-mount device (SMD) LED designed for indication and backlight applications. It features a green emitting color with a peak wavelength of 515nm and a dominant wavelength of 525nm. The LED operates at a forward voltage of 3.3V typical and a current of 20mA, providing a typical luminous intensity of 1200 mcd.
This component comes in a compact 0603 (1608 Metric) package measuring 1.6mm x 0.8mm with a maximum height of 1.10mm. It has a wide viewing angle of 60 degrees. The LED is constructed using InGaN on Sapphire technology and is suitable for various applications including status indicators, home appliances, and portable devices.
Absolute maximum ratings include a power dissipation of 102.5mW and a junction temperature of 115°C. The operating temperature range is -40°C to +85°C. It is also noted as being halogen-free and RoHS compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage for the APTD1608ZGCK LED is 3.3V at 20mA.
The peak emission wavelength of the APTD1608ZGCK LED is 515nm.
The viewing angle of the APTD1608ZGCK LED is 60 degrees.
The package size of the APTD1608ZGCK LED is 0603 (1608 Metric), measuring 1.60mm L x 0.80mm W.
The operating temperature range for the APTD1608ZGCK LED is -40°C to +85°C.
The APTD1608ZGCK LED is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the APTD1608ZGCK LED is 1 Unlimited.
