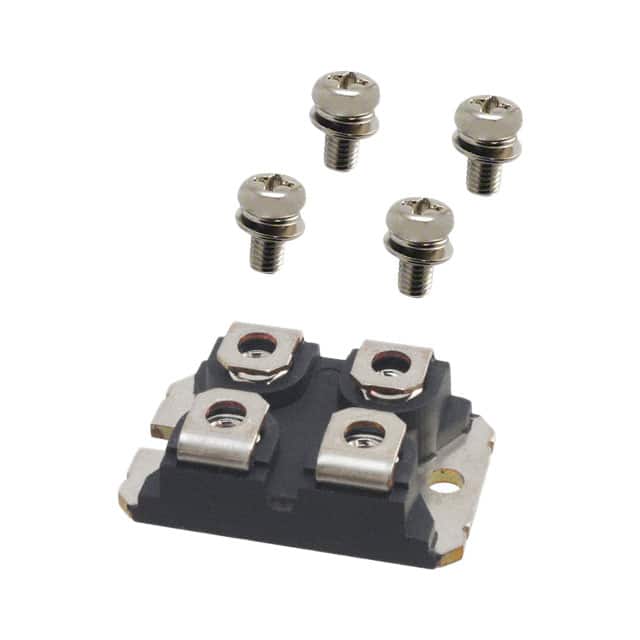

APT50GF120JRDQ3 APT50GF120JRDQ3 is a 1200V, 120A NPT IGBT module from Microchip Technology. It features a single configuration in an ISOTOP chassis mount package with 521W power dissipation.
Mfr Part #:

APT50GF120JRDQ3

Available from 1 distributors
Mfr Name: Microchip Technology
Microchip Technology
APT50GF120JRDQ3 is a 1200V, 120A NPT IGBT module from Microchip Technology. It features a single configuration in an ISOTOP chassis mount package with 521W power dissipation.
✓ Total Stock: 10,000 pcs
$ Price Range: $86.54

APT50GF120JRDQ3 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
10,000 pcs
On Request
10000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

APT50GF120JRDQ3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Configuration
Current
IGBT Type
Input
Input Capacitance (Cies) @ Vce
Input Type
Mounting Type
NTC Thermistor
Operating Temperature
Power
Supplier Device Package
Vce(on) (Max) @ Vge, Ic
Voltage
View Similar Products (0)

APT50GF120JRDQ3 Description

Short technical summary and product information.

The APT50GF120JRDQ3 is a high-voltage, high-current NPT (Non-Punch Through) IGBT module designed for power switching applications. It offers a collector-emitter voltage rating of 1200V and a continuous collector current of 120A, with a maximum power dissipation of 521W. The module features a single IGBT configuration with standard gate input, and does not include an NTC thermistor. Typical electrical characteristics include an input capacitance of 5.32 nF at Vce=25V and a collector-emitter saturation voltage of 3V maximum at Vge=15V and Ic=75A. The module is housed in an ISOTOP package (also known as ISOTOP®) and is intended for chassis mount installation. It operates over a junction temperature range of -55°C to 150°C. This device is suitable for use in motor drives, uninterruptible power supplies, and industrial power converters.

APT50GF120JRDQ3 Quick Information

Product Type: IGBT Module
Canonical Name: APT50GF120JRDQ3 NPT IGBT Module, 1200V, 120A, ISOTOP
Subcategory: IGBT Modules

APT50GF120JRDQ3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

APT50GF120JRDQ3 Estimated Pricing

Qty Low High
10+ $86.54 $86.54

Estimated market price range - modelled values for guidance only, not live distributor offers.

APT50GF120JRDQ3 Features

  • Rated for 1200V collector-emitter voltage.
  • Supports 120A continuous collector current.
  • Maximum power dissipation of 521W.
  • NPT IGBT technology for robust switching.
  • ISOTOP package for chassis mount thermal management.

APT50GF120JRDQ3 Applications

  • Ideal for motor drive inverters.
  • Suitable for UPS systems.
  • Used in industrial power converters.
  • Applied in wind turbine converters.

APT50GF120JRDQ3 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum collector-emitter voltage of the APT50GF120JRDQ3?

1200 V.

What is the package type of the APT50GF120JRDQ3?

ISOTOP (also known as ISOTOP®).

What is the operating temperature range of the APT50GF120JRDQ3?

-55°C to 150°C (junction).

Is the APT50GF120JRDQ3 RoHS compliant?

RoHS3 compliant (unverified).

What is the continuous collector current rating?

120 A.

What is the maximum power dissipation?

521 W.

What is the collector-emitter saturation voltage?

3 V maximum at Vge=15 V, Ic=75 A.
