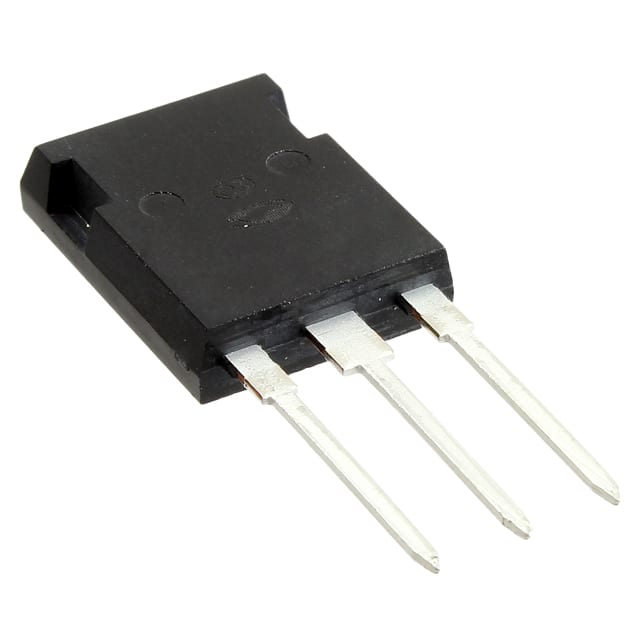

The APT30D60BHBG is a high-performance fast recovery diode array manufactured by Microchip Technology. It consists of two diodes in a series connection configuration, designed for rectification and freewheeling applications requiring high efficiency and fast switching.
With a maximum reverse voltage rating of 600V and an average rectified current of 27A per diode, this device can handle significant power. It offers a forward voltage drop of 1.8V at 30A and a fast reverse recovery time of 85ns, enabling high-frequency operation. The non-repetitive surge current rating is 250A, providing robustness under transient conditions.
The device is housed in a through-hole TO-247-3 package (supplier device package TO-247 [B]), suitable for robust mounting on PCBs. The junction operating temperature range is -55°C to 175°C, allowing use in harsh environments.
Typical applications include power supply rectification, motor control, and other power conversion circuits where fast recovery and high voltage capability are required. Its series connection configuration allows for higher voltage blocking or center-tapped rectifier designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.06 | $6.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
600V.
27A per diode.
1.8V at 30A.
85ns.
TO-247-3 (through-hole).
-55°C to 175°C.
1 pair series connection.
