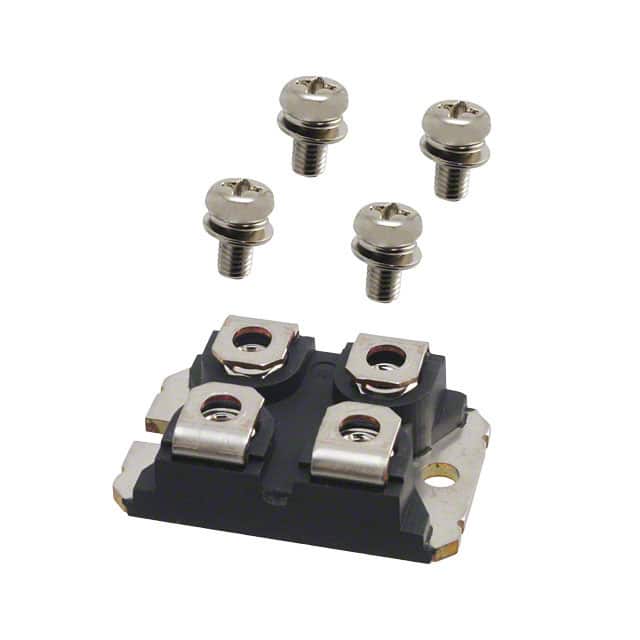

APT2X30D60J Fast recovery diode module with two independent diodes, rated 600V reverse voltage and 30A average current per diode. Features 85ns reverse recovery time and ISOTOP packaging.
Mfr Part #:

APT2X30D60J

Available from 2 distributors
Mfr Name: Microchip Technology
Microchip Technology
Fast recovery diode module with two independent diodes, rated 600V reverse voltage and 30A average current per diode. Features 85ns reverse recovery time and ISOTOP packaging.
✓ Total Stock: 5,030 pcs
$ Price Range: $20.79

APT2X30D60J Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
30 pcs
On Request
30 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

APT2X30D60J Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Diode Configuration
Mounting Type
Package / Case
Reverse Recovery Time (trr)
Speed
Supplier Device Package
Tape & Reel
Technology
Voltage
View Similar Products (0)

APT2X30D60J Description

Short technical summary and product information.

The Microchip Technology APT2X30D60J is a fast recovery diode module configured as two independent standard diodes. It is designed for high-voltage, high-current applications requiring efficient switching. The module has a maximum DC reverse voltage rating of 600V and an average rectified current of 30A per diode. The forward voltage is typically 1.8V at 30A, and reverse leakage current is 250µA at 600V. The reverse recovery time is 85ns, suitable for fast switching circuits. The module is chassis mountable and comes in a SOT-227-4 miniBLOC package, also known as ISOTOP. This package offers robust thermal performance and electrical isolation. The product is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited).

APT2X30D60J Quick Information

Product Type: Fast Recovery Diode Module
Canonical Name: Microchip Technology APT2X30D60J 600V 30A Fast Recovery Diode Module
Subcategory: Fast Recovery Diodes

APT2X30D60J Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

APT2X30D60J Estimated Pricing

Qty Low High
1+ $20.79 $20.79

Estimated market price range - modelled values for guidance only, not live distributor offers.

APT2X30D60J Features

  • Two independent fast recovery diodes.
  • Rated 600V reverse voltage and 30A current.
  • Fast reverse recovery time of 85ns.
  • Chassis mount ISOTOP package for thermal management.
  • RoHS3 compliant and REACH unaffected.

APT2X30D60J Applications

  • Used in high voltage power supplies.
  • Suitable for motor drive circuits.
  • Ideal for welding equipment and inverters.
  • Applied in uninterruptible power supplies (UPS).

APT2X30D60J FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum reverse voltage of the APT2X30D60J?

600V.

What is the average forward current per diode?

30A.

What is the forward voltage drop at rated current?

1.8V at 30A.

What is the reverse recovery time of this diode module?

85ns.

What package type is the APT2X30D60J available in?

SOT-227-4 miniBLOC (ISOTOP).

How many diodes are in the module?

Two independent diodes.

What is the mounting type?

Chassis mount.
